HARRINGTON
Harrington H4 Electric Chain Hoist, 4000 lb. Load Capacity, 230/460V, 15 ft. Hoist Lift, 14 fpm
Hover over image to magnify
#927835-6 | Pkg Qty: 1
$10,678.59 pkg | $10,678.59 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps @ Low Volts
11.8
Load Capacity
4000 lb.
Brake
DC Current
Lubrication Type
Oil Bath
Brand
HARRINGTON
Material
Aluminum Body
Classification
H4
Mfr. Part Number
NERM020L-L-15
Clutch Style
Friction
Mfr. Warranty Length
3 yr., 10 yr. Brake Warranty
Color Family
Yellow
Minimum Between Hooks
22-7/16 in.
Control
110V Push Button Control Pendant
Minimum Radius Curve
31-1/2 in.
Finish
Electrostatic Enamel
Motor HP
2.4
Hoist Lift
15 ft.
Package Quantity
1
Hoist Mount
Motorized Trolley
Phase
3
Housing Depth
19-7/16 in.
Reeving
1
Housing Length
25-7/16 in.
Shipping Weight
253 lb.
Housing Width
16-7/16 in.
Thermal Protection
Yes
Item
Electric Chain Hoist
Voltage
230/460
Lift Speed
14 fpm
General
Control Cord
11 ft
Min. Radius Curve
31 1/2 in
Fits Beam Flange W
3-7/32 in to 6-3/16 in
Standards
ASME B30.16, UL1340
Headroom
22-7/16"
Trolley Speed
40 fpm
Includes
Chain Container, Guardian Smart Brake, Motorized Trolley
Trolley Wheel Dia.
2 13/32 in
Min. Between Hooks
22 7/16 in
Wheel
4.33
Min. Radius
31.5"
Product Description

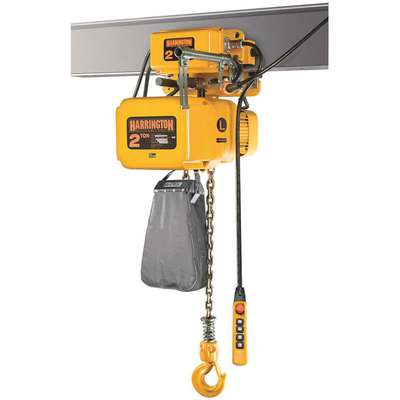

The HARRINGTON NERM 3-phase electric chain hoist with motorized trolley is suitable for indoor our outdoor use.
- Lightweight, die-cast aluminum body
- Fan-cooled motor with 60-minute duty rating
- 5-pocket load sheave reduces chain vibration
- Grade 80 nickel-plated load chain
- Includes chain container
- Upper and lower limit switches
- Trolley operates on S or W beams
- Side guide rollers for smooth travel along beam
- Rubber bumpers and drop stops
- Meet ANSI/ASME B30.16 and UL 1340
- H4 and IP55 rated
- RoHS compliant
