FINISH THOMPSON

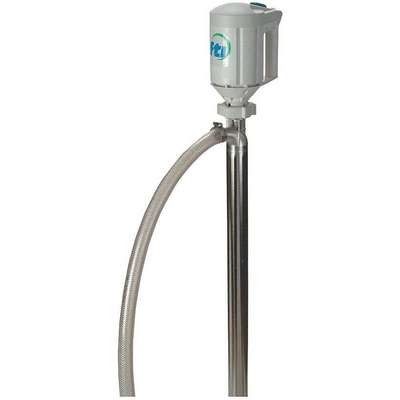

4/5HP Intake Tube 316 Stainless Steel Electric Operated Drum Pump, 10 to 40 GPM, 3500 to 10,000 RPM
Hover over image to magnify
#927824-4 | Pkg Qty: 1
$1,477.56 pkg | $1,477.56 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action Type
Piston
Motor RPM
3500 to 10,000
Adapter Material
Polypropylene
Motor Type
Universal AC
Adapter Type
Bung
Outlet Size
1" Barb
Agency Compliance
CSA
Package Quantity
1
Brand
FINISH THOMPSON
Phase
1
DEF Compatible
No
Plug Type
NEMA 5-15
Discharge Tube Length
5 ft.
Power Source
Electric
Discharge Tube Outlet ID Size
1"
Pump Body Material
316 Stainless Steel
Discharge Tube Outlet Outside Diameter
1-5/16"
RPM
3500 to 10,000
Discharge Tubing Material
PVC
Seal
Fluoroelastomer
Duty Cycle
Continuous
Seal Material
Fluoroelastomer
Fits
2" Bung
Self-Priming
Yes
Food Grade
No
Series
PF
For Use On
55 gal. Drums and Totes
Shipping Weight
21.45 lb.
Full Load Amps
5.6
Suction Design
Intake Tube
GPM
10 to 40
Suction Tube Type
Intake Tube
Gasket Material
Thermal Protection
No
Inlet Size
2"
Type
Motor and Tube
Item
Electric Operated Drum Pump
Variable Speed
Yes
Maximum Head
10 to 80 ft.
Voltage
115 VAC
Metered
No
Voltage @ 50 Hz
115
Mfr. Part Number
PFS-40 & M3V Kit
Voltage @ 60 Hz
115
Mfr. Warranty Length
1 yr.
Wetted Materials
316 Stainless Steel, FKM, PTFE, PVC
Motor Enclosure
ODP
pH Range
6 to 10
General
Application
Chemical Transfer
Max. Flow Rate
40 gpm
Bung Connection Dia.
2 in
Max. Fluid Temp.
220 Degrees F
Compatible Chemicals
Acetic Acid 20%, Acetic Acid 80%, Ammonium Hydroxide, Antifreeze (Coolant), Automatic Transmission Fluid, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Deionized Water, Ethylene Glycol, Formic Acid, Fresh Water, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Trichlorethylene (50%)
Max. Head - Pumps
80 ft
Discharge Connection Type
Hose Barb
Max. Head Pressure
35 psi
Discharge Tube Outlet ID
1 in
Max. Outlet Pressure
35 psi
Discharge Tube Outlet OD
1 5/16 in
Max. Viscosity
500 cps
For Container Size
55 gal
Min. Fluid Temp.
35 Degrees F
For Container Type
Drum
Noise Level
79 db
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Automatic Transmission Fluid, Brake Fluid, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Formic Acid, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Trichlorethylene, Water
Nominal Voltage
110V AC
For Use With
Chemical Transfer
Not Recommended Chemicals
Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Anhydrous Ammonia, Biodiesel, Cyclohexane, DEF, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Paint Thinner, Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Turpentine, Windshield Washer Fluid, Xylene
Frequency (Hz)
60
Number of Phases
1
Height Above Container
15 1/3 in
Pump Connection Type
Smooth Bore
Hose Inside Dia.
1 in
Pump Package Type
Basic Pump with Discharge Hose
Hose Outside Dia.
1 5/16 in
Rated Voltage
115V AC
Hose Tube Material
PVC
Standards
CSA Certified
Housing Material - Pumps
316 Stainless Steel
Suction Tube ID
2 in
Includes
Clamp, Hose, Motor, Pump
Suction Tube Material
316 Stainless Steel
Includes Discharge Hose
Yes
Suction Tube OD
2 in
Includes Suction Tube
Yes
Product Description
Acid, base, and solvent electric drum pumps are made with corrosion-resistant materials that withstand a range of acidic and basic chemical concentrations. They are used to dispense and transfer moderate to large volumes of substances and solutions in laboratories and chemical processing plants.
Documents
Item Barcode
Drum Pump,115VAC,4/5 Hp,60 Hz
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5FZV5 | Drum Pump, 115VAC,4/5 |
 | UNSPSC CODES | 40151529 | |
 | VMRS (ATA) CODES | 053-006-009 | Drum Pump, 115VAC,4/5 |
