HUBBELL WIRING DEVICE-KELLEMS

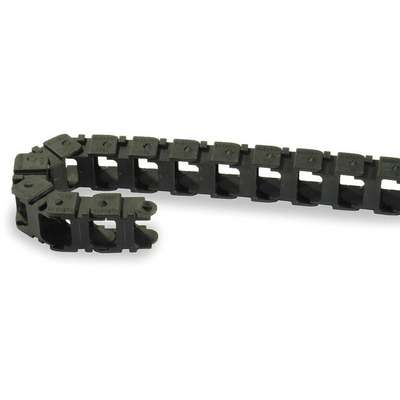

Hubbell Wiring Device-Kellems CableTrak: Open, 0.8" Cavity Ht, 0.6" Cavity Wd, 12" Lg

Hover over image to magnify
Cabletrak(r),Length,1Ft,Width,
PI_Asset_1756055
PI_Asset_1769297
PI_Asset_1771228
PI_Asset_1772775
Cabletrak(r),Length,1Ft,Width,
PI_Asset_1756055
PI_Asset_1769297
PI_Asset_1771228
PI_Asset_1772775

#927819-9 | Pkg Qty: 1

$39.08 pkg | $39.08 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
HUBBELL WIRING DEVICE-KELLEMS
Item
CableTrak
Cavity Height
0.75 in./19.1mm
Maximum Cable Diameter
0.29 in.
Cavity Width
0.59 in.
Mfr. Part Number
HCT101141
Channel Height
0.75 in.
Outside Width
1.03 in.
Channel Width
0.59 in.
Package Quantity
1
Color Family
Black
Shipping Weight
.45 lb.
General
Accessory Length
1 in
Crossbar Style
Hinged Snap-On
Accessory Material
Plastic
For Use With
Machine Tools, Robotic Automation, And Material Handling
Accessory Width
1.0 in
Includes
No Bracket Included
Carrier Design
Open
Max. Cable Dia.
0.3 in
Carrier Links Material
Plastic
Max. Operating Temperature
100 °F
Crossbar Material
Fiberglass Reinforced Nylon
Min. Operating Temperature
20 °F
Crossbar Opening Design
Opens Outside
Mounting Brackets Included
Without Mounting Brackets

Product Description

These cable and hose carriers have mounting brackets on either end and hinged, snap-on crossbars that open for access at any point. This allows cable and hose to lay in the carrier cavity, so they don't need to be pulled through the whole length of the carrier. They also have an open construction, which promotes air flow to prevent heat buildup. These carriers may be extended with carrier link chains. Cable and hose carriers support and protect moving cable and hose in general purpose applications.

Item Barcode
9278199
Cabletrak(r),Length,1Ft,Width,
 NameItemDescription
Grainger DropshipGrainger Dropship1XJG7CableTrak(R), Length,1Ft,
UNSPSC CODESUNSPSC CODES26121630
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009CableTrak(R), Length,1Ft,
