SOUTHWIRE COMPANY

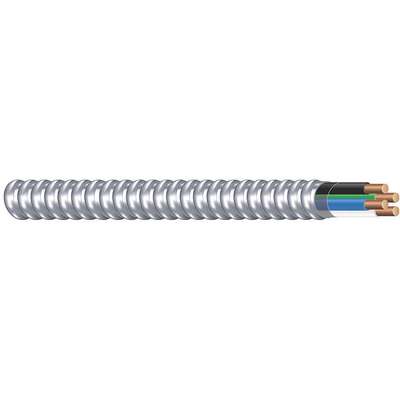

Southwire Company 250 ft. Solid Metal Clad Armored Cable; Conductors: 3 with Ground, 12 AWG Wire Size, Silver

Hover over image to magnify
Metal Clad,3 w/Ground
PI_Asset_1354311
Metal Clad,3 w/Ground
PI_Asset_1354311

#927814-1 | Pkg Qty: 1

$674.60 pkg | $674.60 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
SOUTHWIRE COMPANY
Package Quantity
1
Cable Type
MC
Packaging
Coil
Cable/Wire Type
MC
Shipping Weight
30.9 lb.
Insulation Material
PVC
Spool Length
250 ft.
Item
Metal Clad Armored Cable
Stranded / Solid
Solid
Jacket Color
Silver
Temperature Rating
194F
Jacket Material
Aluminum
Voltage
600 V
Length
250 ft.
Wire Color
Black, Blue, Green, White
Maximum Amps
20
Wire Size
12 AWG
Mfr. Part Number
61097301
Wire and Cable Item
Metal Clad Armored Cable
Nominal Outside Diameter
0.513 in.
Wire/Cable Jacket Material
Aluminum
Number of Conductors
3 with Ground
Wire/Cable Size
12 AWG
General
Application
Outdoor Use
Standards
UL
Cable Type - Wire and Cable
MC
Temp. Rating
194°F
Conductor Design
Solid
Trade Designation
MC
Jacket Material - Wire and Cable
Aluminum
Wire Size - Wire and Cable
12 AWG

Product Description

Armored building cable is a collection of plastic-coated insulated wire bundled together and protected by a corrugated metal jacket (called a sheath or cord) that serves as a conduit and provides grounding. Also known as BX cable or metal-clad (MC) cable, armored cable prevents accidental penetration better than NM-B building cable, but it is heavier and harder to handle, rip back, and cut. It is often used in applications where cable will be exposed to mechanical or environmental damage under normal operating conditions, such as power circuits in industrial plants and commercial buildings.

Building wire and cable carry electrical current from a power source to a device in a building, such as an outlet or light fixture. Building wire is typically run through conduit, cable trays, or raceways. Building cable consists of multiple strands of wire bundled inside a thermoplastic or metal sheath. Building wire and cable are typically used to run new circuits or extend old circuits inside walls and ceilings in commercial, industrial, and residential properties.

Item Barcode
9278141
Metal Clad,3 w/Ground
 NameItemDescription
Grainger DropshipGrainger Dropship446P42Metal Clad,3 w/Ground
UNSPSC CODESUNSPSC CODES26121614
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Metal Clad,3 w/Ground
