SUMITOMO

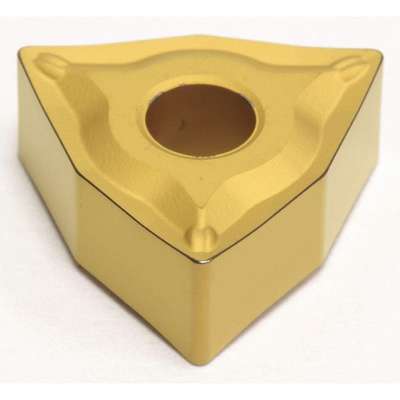

Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 1/2", TiAlN+AlCrN
Hover over image to magnify
Double tap image to magnify
#927796-7Pkg Qty: 10
$117.10 pkg | $11.71 ea
In Stock
Shipping to 43085
Ships from supplier. Expected to arrive on or before Fri. Mar 28.
Technical Specifications
Key Specifications
ANSI Code
WNMG433ESU
Insert Style
WNMG
ANSI Number
WNMG433ESU-AC520U
Insert Thickness
0.1875 in.
Brand
SUMITOMO
Item
Turning Insert
Cast Iron Compatibility
Yes
Mfr. Part Number
WNMG433ESU-AC520U
Chip-Breaker
Yes
Mounting Hole Diameter
0.203 in.
Coating
CBN
Mounting Style
Top and Hole Clamping
Corner Radius
3/64 in.
Non Ferrous Compatability
No
Cutting Direction
Neutral
Nose Radius
0.0469 in.
Cutting Direction
Neutral
Number of Edges
3
Grade
AC520U
Pack Quantity
10
Hardened Compatibility
No
Primary Material Application
Cast Iron, Nickel, Titanium
ISO Number
WNMG080412NSU
Rake
13 deg.
Included Angle
80
Shape
Trigon
Inscribed Circle
1/2 in.
Shipping Weight
0.3 lb.
Insert Application
Finishing
Style
WNMG
Insert Material
Carbide
Thickness
3/16 in.
Insert Shape
Trigon
Turning Insert Shape
Trigon
Insert Size
433
Workpiece Compatibility
Cast Iron (K), Stainless (M), Super Alloy (S)
General
Chip-Breaker Code
ESU
Finish - Machining
TiAlN+AlCrN
Chip-Breaker Style
Double Sided
For Use With
Toolholders, Boring Bars
Clearance Angle
0 Degrees
Insert Holding Type
Straight Hole
Coating Process
PVD
Measurement System
Fractional Inch
Cutting Application
Turning
Primary Material Application ISO Code
K, S
Features
Excellent Fracture Resistance
Through Hole Inside Dia.
0.2031 in
Product Description
Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 1/2 in, TiAlN+AlCrN
Compliance & Restrictions
WARNING: Cancer - www.P65Warnings.ca.gov.
Item Barcode
Turning Insert,Wnmg,Carbide,
