OSG

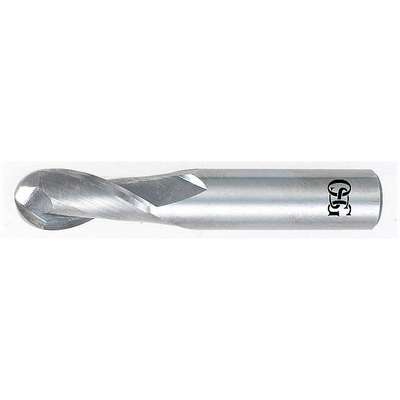

Ball End Mill, 9/16" Milling Diameter, Number of Flutes: 2, 1-1/8" Length of Cut, TiAlN, 402BN
Hover over image to magnify
#927777-4 | Pkg Qty: 1
$110.53 pkg | $110.53 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
OSG
Item
Ball End Mill
Cast Iron Compatibility
Yes
Length of Cut
1-1/8 in.
Chip-Breaker
No
List Number
402BN
Cutting Direction
Right
Mfr. Part Number
402-5625-BN11
Cutting Direction
Right Hand
Milling Diameter
9/16 in.
Cutting Type
Center
Neck Length
Not Applicable
Diameter
9/16 in.
Non Ferrous Compatability
Yes
Dimension Type
Fractional Inch
Number of Flutes
2
End
Center Cutting
Overall Length
3-1/2 in.
End Mill Application
Finishing
Pack Quantity
1
End Mill Cutting Type
Center Cutting
Primary Material Application
Aluminum, Cast Iron, Hardened Steel, Steel, Tool and Die Steel
End Mill Material
Carbide
Shank Diameter
9/16 in.
End Style
Ball Nose
Shank Type
Straight
Finish
TiAlN
Shipping Weight
0.35 lb.
Grade
High Performance
Single End/Double End
Single End
Hardened Compatibility
Yes
Type
Regular
Helix Angle
30 deg.
General
Application
For Carbon Steel, Tool Steel, Cast Iron, 300 or 400 Series Stainless Steel
Material Grade - Machining
High Performance
Coolant Fed
Non-Coolant Through
Measurement System
Fractional Inch
Drilling Tool Configuration
Individual
Milling Dia.
9/16 in
End Mill Style
Ball Nose
Primary Material Application ISO Code
H, K, N, P
Finish - Machining
TiAlN
Shank Dia.
9/16 in
Material - Machining
Carbide
Shank Type - Machining
Straight
Product Description
Two-flute end mills help maximize chip clearance. The TiAlN coating on these end mills withstands high temperatures and protects them from wear. It allows the end mills to be used at faster speeds than end mills with a bright finish, and it resists cracks and oxidation better than TiN or TiCN coatings.
