Home All Products Material Handling Lifting, Pulling and Positioning Hoists and Trolleys Electric Hoists SKU: 927775-9

Harrington H4 Electric Chain Hoist, 10,000 lb. Load Capacity, 230V, 20 ft. Hoist Lift, 11/2 fpm

Name: Harrington H4 Electric Chain Hoist, 10,000 lb. Load Capacity, 230V, 20 ft. Hoist Lift, 11/2 fpm
Brand: HARRINGTON
SKU: 9277759
Price: 11862.05 USD
Availability: InStock

Hover over image to magnify

Harrington H4 Electric Chain Hoist, 10,000 lb. Load Capacity, 230V, 20 ft. Hoist Lift, 11/2 fpm Video

Double tap image to magnify

#927775-9Pkg Qty: 1

$11,862.05 pkg | $11,862.05 ea

This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085

Ships from supplier. Expected to arrive by end of Apr, 2025.

Technical Specifications

Key Specifications

Amps @ Low Volts

17.3

Load Capacity

10000 lb.

Brake

Electromagnetic

Lubrication Type

Oil Bath

Brand

HARRINGTON

Material

Die Cast Aluminum

Classification

Mfr. Part Number

NERP050LD-20 / 230v

Clutch Style

Friction Clutch

Mfr. Warranty Length

3 yr., 10 yr. Brake Warranty

Control

110v

Minimum Between Hooks

33-1/2 in.

Finish

Electrostatic Enamel

Minimum Radius Curve

90-5/8 in.

Hoist Lift

20 ft.

Motor HP

4.7

Hoist Mount

Push Trolley

Package Quantity

Housing Depth

10-1/2 in.

Phase

Housing Length

31-1/2 in.

Reeving

Housing Width

17-1/2 in.

Shipping Weight

438 lb.

Item

Electric Chain Hoist

Thermal Protection

Yes

Lift Speed

11/2 fpm

Voltage

230

General

Beam Height

6-11/16"

Min. Between Hooks

33 1/2 in

Control Cord

16 ft

Min. Radius

90.6

Fits Beam Flange W

4 in to 7 in

Min. Radius Curve

90 5/8 in

Headroom

33-1/2"

Standards

ANSI/ASME B30.16, ASME HST-1M, NFPA70 UL1340 RoHS

Includes

10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords

Product Description

Electric Chain Hoists

H4 Rated Die-cast aluminum Friction clutch Oil bath lubrication Include chain container

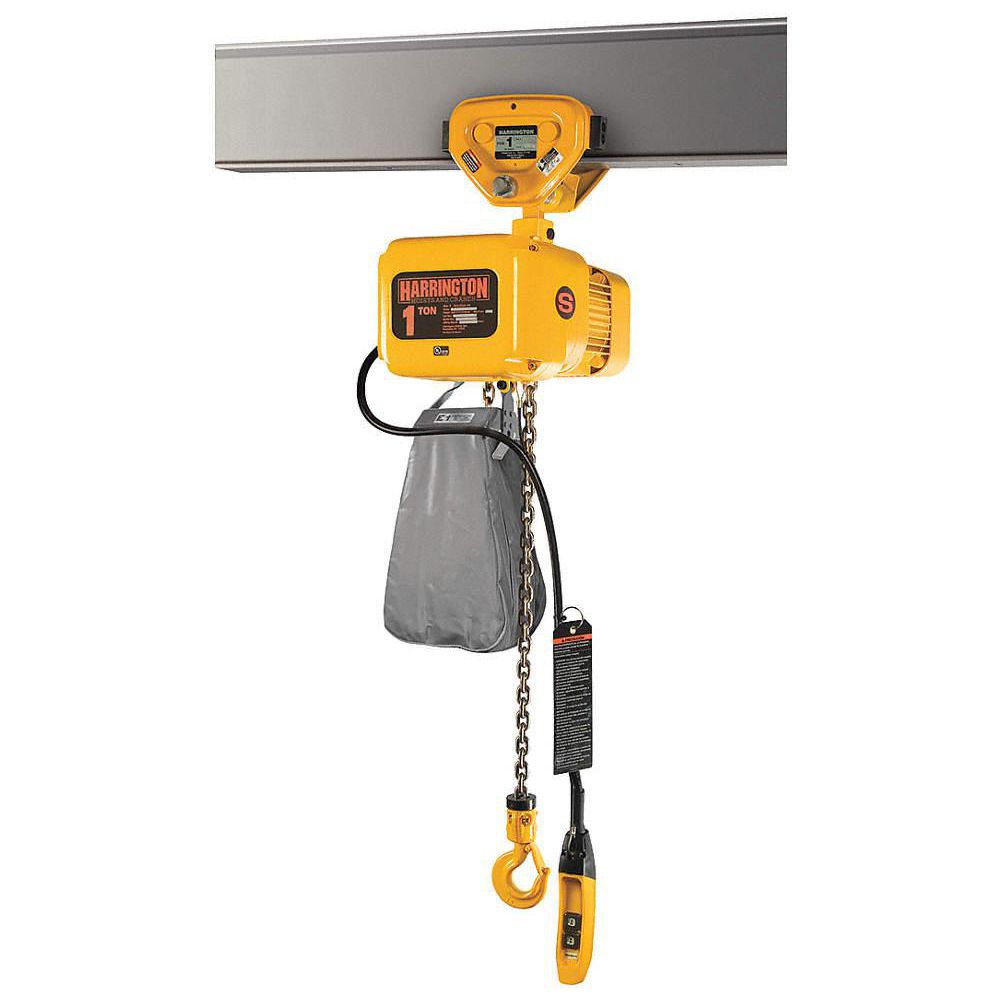

NERP Electric Chain Hoists with Push Trolley
Electromagnetic brake Meet ANSI/ASME B30.16, ASME HST-1M, NFPA 70, UL 1340, and RoHS compliant.
Designed with a unique load sheave. Increased number of pockets reduce chain vibration and increase chain life. Push trolley features all-steel wheels with sealed ball bearings.
