Slip Fixed Renewable Combination Drill Bushing, 5/16", I.D. 3/4", O.D., 5/16": Drill Size

Hover over image to magnify

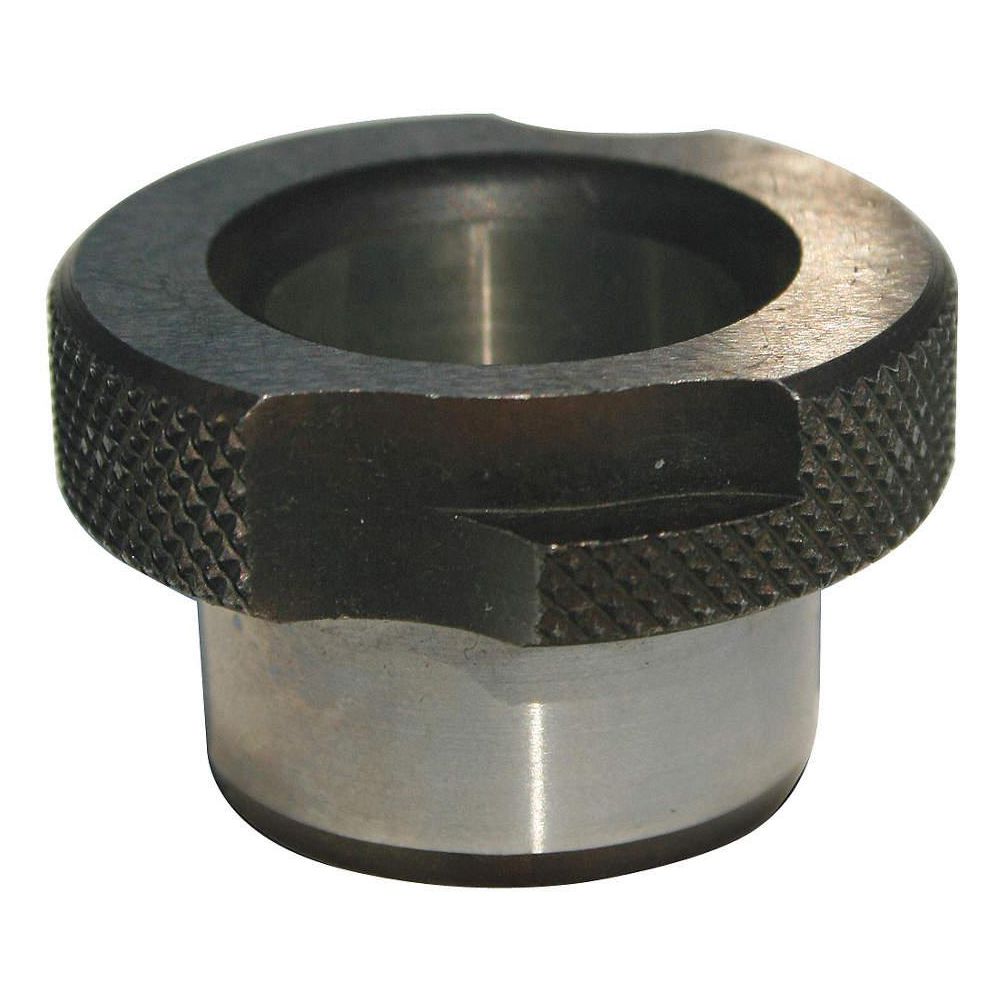

Drill Bushing,Type Sf,Drill
Drill Bushing,Type Sf,Drill
Double tap image to magnify
Drill Bushing,Type Sf,Drill
Drill Bushing,Type Sf,Drill

#927743-1Pkg Qty: 1

$59.49 pkg | $59.49 ea

Loading Stock Status...

Shipping to 43085
|

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<p>These slip-fixed/renewable (SF) drill bushings come in standard sizes expressed in fractional inches. Standard-wall slip-fixed drill bushings have thicker walls and are typically sturdier than thin-wall slip-fixed drill bushings.</p>

These slip-fixed/renewable (SF) drill bushings come in standard sizes expressed in fractional inches. Standard-wall slip-fixed drill bushings have thicker walls and are typically sturdier than thin-wall slip-fixed drill bushings.

Pkg Qty 1 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Item
Slip-Fixed/Renewable Drill Bushing (SF)
Bushing Type
Slip Fixed Renewable Combination
Material
52100 Thru Hardened
Concentricity Tolerance
.0003 in. T.I.R. Max
Mfr. Part Number
SF4848IM
Decimal Equivalent
5/16
Outside Diameter
3/4 in.
Drill Size
5/16 in.
Outside Diameter Tolerance
-0.0002 in. /+0.0000 in.
Hardness
RC 62-64
Overall Length
3 in.
Head Material
High Speed Steel
Package Quantity
1
Head Thickness
1/4 in.
Rockwell Hardness
RC 62-64
Inside Diameter
5/16 in.
Shipping Weight
.35 lb.
Inside Diameter Tolerance
+0.0001 in. /+0.0005 in.
General
Bushing Code
SF
Heat Treatment
Through Hardened
Bushing Head Type
Headed
Material - Machining
High Speed Steel
Drill Bushing Wall Type
Standard Wall
Measurement System
Fractional Inch
Head Dia.
1 3/64 in
Size - Decimal
31/64 in - 0.4844
Head Type
Yes

Product Description

These slip-fixed/renewable (SF) drill bushings come in standard sizes expressed in fractional inches. Standard-wall slip-fixed drill bushings have thicker walls and are typically sturdier than thin-wall slip-fixed drill bushings.
