DAYTON

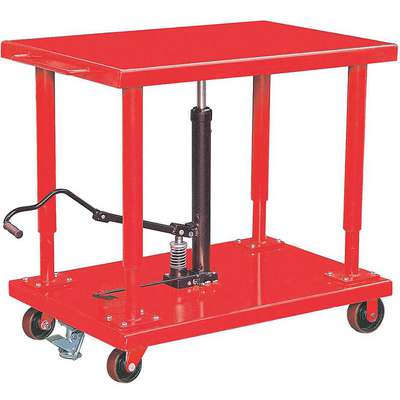

Mobile Manual Lift, Manual Push Lift Table, 4000 lb. Load Capacity, Lifting Height Max. 54"

Hover over image to magnify
Lift Table,4000 Lb.,42inLx30
Lift Table,4000 Lb.,42inLx30

#927740-1 | Pkg Qty: 1

$914.07 pkg | $914.07 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
DAYTON
Lifting Height Minimum
36 in.
Caster Diameter
6 in.
Load Capacity
4000 lb.
Caster Material
Polyurethane
Lowered Height
36 in.
Caster Type
(2) Rigid, (2) Swivel with Brake
Mfr. Part Number
35KT39
Caster Wheel Diameter
(2) 5 in., (2) 6
Mobile/Stationary
Mobile
Caster Wheel Type
(2) Rigid, (2) Swivel with Brake
Overall Height
54 in.
Frame Material
Steel
Overall Length
42 in.
Item
Lift Table
Overall Width
30 in.
Lift Control
Foot Pump
Package Quantity
1
Lift Mechanism
Hydraulic
Platform Style
Fixed
Lift Mobility
Manual Lift, Manual Push
Platform Width
30 in.
Lift Table Item
Lift Table
Powered By
Hydraulic
Lift Table Platform Style
Fixed
Raised Height
54 in.
Lifting Height Maximum
54 in.
Shipping Weight
560 lb.
General
Brake Type
Floor Lock
Number of Lifting Posts
5
Caster Dia.
6 in
Number of Posts
4
Caster Wheel Dia.
5 in, 6 in
Overall LxWxH
42 in x 30 in x 54 in
Elevation per Stroke
3/8"
Platform Gauge
10 ga
Includes
Floor Lock, Foot Pedal
Platform LxW
42 in x 30 in
Lifting Height Max.
54 in
Platform Type
Solid
Lifting Height Min.
36 in
Wheel Configuration
(4) Swivel with Floor Lock
Lifting Height per Pump
1/8 in
Wheel/Tread Material
Polyurethane

Product Description

Manual mobile post-lift tables have support posts that allow their platform to be raised or lowered. They have more open space below their platform than scissor-lift tables and are used for transferring and positioning dies and other large, heavy parts in manufacturing, repair, assembly, and other industrial tasks. The tables' hydraulic lifting mechanism is controlled with a foot pump, and they have brakes or floor locks that can be engaged to prevent the tables from moving unexpectedly.
