Mobile Manual Lift, Manual Push Lift Table, 6000 lb. Load Capacity, Lifting Height Max. 54"

Hover over image to magnify

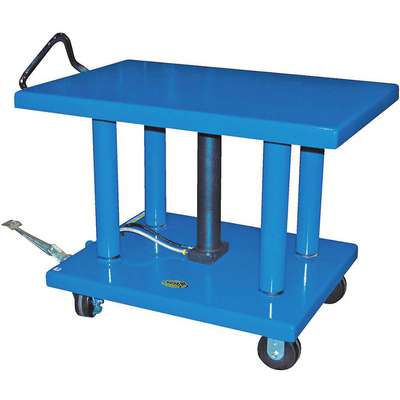

Hydraulic Lift Table, 32x48,54
Hydraulic Lift Table, 32x48,54

#927740 | Pkg Qty: 1

$2,726.84 pkg | $2,726.84 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Material
Steel
Caster Material
Phenolic
Maximum Lifting Height
54 in.
Caster Wheel Diameter
6 in.
Mfr. Part Number
HT-60-3248
Caster Wheel Type
(2) Rigid, (2) Swivel
Mobile/Stationary
Mobile
Frame Material
Steel
Overall Height
39-7/8 in.
Item
Lift Table
Overall Length
59-11/16 in.
Lift Control
Foot Pump
Overall Width
32 in.
Lift Mechanism
Hydraulic
Package Quantity
1
Lift Mobility
Manual Lift, Manual Push
Platform Width
32 in.
Lift Table Item
Lift Table
Raised Height
54 in.
Lift Table Platform Style
Fixed
Shipping Weight
594 lb.
Lifting Height Maximum
54 in.
Type
Post
Lifting Height Minimum
36 in.
Wheel Diameter
6 in.
Load Capacity
6000 lb.
Wheel Material
Phenolic
Lowered Height
36 in.
Wheels
6 x 2
General
Brake Type
Side Pedal Brake
Number of Posts
4
Caster Wheel Dia.
6 in
Overall LxWxH
59 3/4 in x 32 in x 39 7/8 in
Includes
Floor Lock
Platform LxW
48 in x 32 in
Lifting Height Max.
54 in
Platform Type
Solid
Lifting Height Min.
36 in
Wheel Configuration
(2) Swivel with Brake, (2) Rigid
Max. Lifting Height
54"
Wheel/Tread Material
Phenolic
Number of Lifting Posts
5

Product Description

Manual mobile post-lift tables have support posts that allow their platform to be raised or lowered. They have more open space below their platform than scissor-lift tables and are used for transferring and positioning dies and other large, heavy parts in manufacturing, repair, assembly, and other industrial tasks. The tables' hydraulic lifting mechanism is controlled with a foot pump, and they have brakes or floor locks that can be engaged to prevent the tables from moving unexpectedly.
