MILWAUKEE

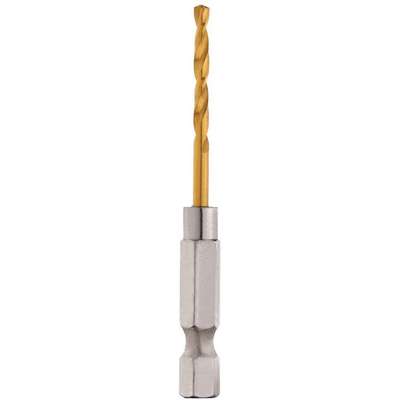

Milwaukee 7/64" Twist Drill Bit, High Speed Steel, TiN, 29/32" Depth, Hex Shank Type

Hover over image to magnify
Drill Bit,Titanium,7/64 In.,PK2
PI_Asset_979902
Drill Bit,Titanium,7/64 In.,PK2
PI_Asset_979902

#927675-1 | Pkg Qty: 2

$10.44 pkg | $5.22 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
MILWAUKEE
Impact Rated
Yes
Cutting Direction
Right
Item
Hex Shank Drill Bit
Decimal Equivalent
0.1094
Material
HSS
Decimal Size
0.1094 in.
Maximum Drilling Depth
7/8 in.
Dimension Type
Fractional Inch
Mfr. Part Number
48-89-4604
Drill Bit Dimension Type
Fractional Inch
Overall Length
2-1/2 in.
Drill Bit Finish
TiN
Package Quantity
2
Drill Bit Material
High Speed Steel
Point Angle
135 deg.
Drill Bit Point Angle
135 deg.
Shank Hex Size
1/4 in.
Drill Bit Size
7/64 in.
Shank Shape
Hex
Flute Length
7/8 in.
Shank Type
Hex
Flute Type
Spiral
Shipping Weight
.05 lb.
Helix Angle
35
General
Depth:Dia. Ratio
8xD
Material - Machining
High Speed Steel
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Split Point
Shank Dia.
1/4"
Finish - Machining
Titanium
Shank Type - Machining
Hex
Impact Rating
Yes

Product Description

The TiN coating on these drill bits protects the bits from wear, increases chip flow in softer materials, and allows the bits to run at higher speeds than drill bits with a black-oxide finish. The bits are made from high-speed steel, which provides some flexibility and absorbs some shock and vibration.

Documents

Drill Bits Overview
Item Barcode
9276751
Drill Bit,Titanium,7/64 In.,PK2
 NameItemDescription
Grainger DropshipGrainger Dropship45KM71Drill Bit, Titanium,7/
UNSPSC CODESUNSPSC CODES20111614
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Drill Bit, Titanium,7/

For more product information by email, click here
