BURNDY

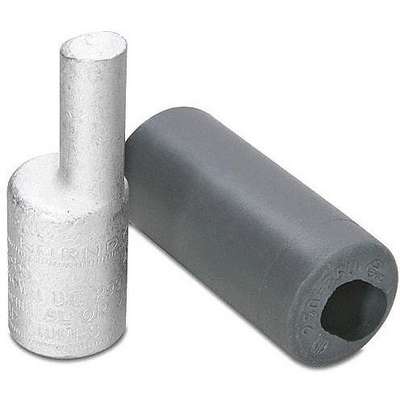

Burndy Offset Adapter, For Use With Hytools Dieless Tools MY29-3, Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V
Hover over image to magnify
#927674 | Pkg Qty: 1
$50.24 pkg | $50.24 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
BURNDY
Length
2.7 in.
Connection Material
Aluminum
Maximum Wire Size
2/0 AWG
Connector Type
Pin Terminal
Mfr. Part Number
AYPO2/0
Description/Special Features
Tin-electro Plated,Rubber Insulation
Minimum Wire Size
1 AWG
Diameter
21/64 in.
Package Quantity
1
For Use With
9305171, 9305173, 9305174,
Shipping Weight
.1 lb.
Height
0.85
Type
AL/CU Cable
Insulation Material
Rubber
Width
0.86 in.
Item
AL Offset Adapter
General
Barrel Diameter
0.86 in
For Wire Size
2/0 AWG
Compatible Installation Tool Model Number
Hytools Dieless Tools MY29-3, Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V
Number of Crimps
2
Connection Orientation
Offset
Pin Diameter
0.328 in
Contact Finish
Tin
Pin Equivalent Wire Size
1 AWG
For Conductor Material
Aluminum, Copper
Pin Length
1.09 in
For Stranded Aluminum Wire Size - Maximum
2/0 AWG
Standards
CSA certified
For Stranded Copper Wire Size - Maximum
2/0 AWG
Strip Length
1 1/16 in
For Stranded Copper Wire Size - Minimum
2/0 AWG
Product Description
This aluminum adapter is designed for reliable termination of aluminum and copper conductors in mechanical connectors. It also features a short connector length and helps to eliminate bi-metallic corrosion. Includes an EPDM rubber cover. Use with mechanical connectors in molded case circuit breakers, panel board equipment, and meter sockets.
