DAYTON

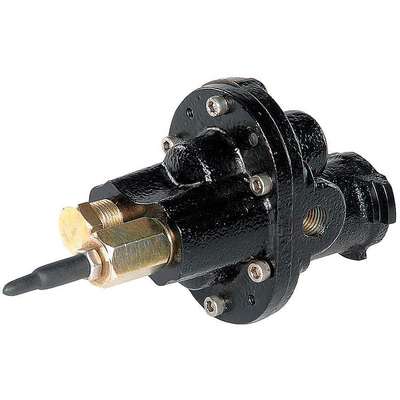

1/4" Intermediate-Duty Cast Iron Rotary Gear Pump Head, Close Coupled Design, 100 psi

Hover over image to magnify
Rotary Gear Pump Head, 1/4 In.,
Rotary Gear Pump Head, 1/4 In.,

#927649 | Pkg Qty: 1

$208.72 pkg | $208.72 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
DAYTON
Mfr. Part Number
4KHR1
Design
Close Coupled
Mfr. Warranty Length
1 Year
Duty Rating
Intermediate
Motor Frame
Carbonator
GPM @ 100 PSI
1.6
O-Ring
Viton
GPM @ 20 PSI
2.1
O-Ring Material
Viton
GPM @ 40 PSI
1.9
Package Quantity
1
GPM @ 60 PSI
1.7
Port Size
1/4 in.
GPM @ 80 PSI
1-1/2
Pump Body Material
Cast Iron
GPM @ Freeflow
2.2
Pump RPM
1725
GPM @ Freeflow @ 1725 RPM
2.2
Recommended Motor HP
1/3
Gear
Steel Spur
Relief Valve
With
HP @ 100 PSI
1/3
Seal
Mechanical Seal Carbon/Ceramic with Viton
HP @ Free Flow
1/3
Shaft Diameter
1/2 in.
HP @ Free Flow @ 1725 RPM
1/3
Shaft Material
Steel
Height
3-5/8 in.
Shipping Weight
7 lb.
Item
Rotary Gear Pump Head
Suction Lift
3.2 ft.
Length
6-9/16 in.
Suction Lift @ 1725 RPM
3.2 ft.
Maximum Pressure
100 psi
Temperature Range
-20 deg. F to 210 deg. F
Maximum Temperature (Deg. F)
210
Type
Intermittent Duty
Maximum Viscosity
550 SSU
Width
2-1/2 in.
General
Body Material
Cast Iron
HP @ 80 PSI
1/3
Compatible Motor Frame
Carbonator Mount
Includes
Relief Valve
Connection
1/4 in NPT
Motor Mounting Type
Close Coupled
Connection Size
1/4 in
Operating Pressure - Maximum
100 psi
Connection Type
NPT
Operating Temperature Range
-20 Degrees F to 210 Degrees F
Current
6 A
Operating Temperature - Maximum
210 Degrees F
Flow Rate @ 100 psi
1.6 gpm
Operating Temperature - Minimum
-20 Degrees F
Flow Rate @ 20 psi
2.1 gpm
Overall Height
3.6 in
Flow Rate @ 40 psi
1.9 gpm
Overall Length
6.6 in
Flow Rate @ 60 psi
1.8 gpm
Overall Width
2.5 in
Flow Rate @ 80 psi
1.7 gpm
Required Horsepower
1/3 hp
Gear Design
Spur
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Gear Material
Steel
Seal Type
Mechanical
HP @ 20 PSI
1/3
Shaft Outer Diameter
1/2 in
HP @ 40 PSI
1/3
Suction Lift - Maximum
3.2 ft
HP @ 60 PSI
1/3
Viscosity - Maximum
550 SUS

Product Description

Dayton heavy duty gear pumps feature self priming, bidirectional, positive displacement, designed to operate with nearly pulseless flow. They are used in a wide variety of applications including industrial, agricultural, marine, domestic, and commercial apartments. The pumps can be directly mounted to NEMA frame Total Enclosed Fan Cooled (TEFC) motors. Made of stainless steel, these pumps are ideal for handling viscous based fluids.
