GENSPEED

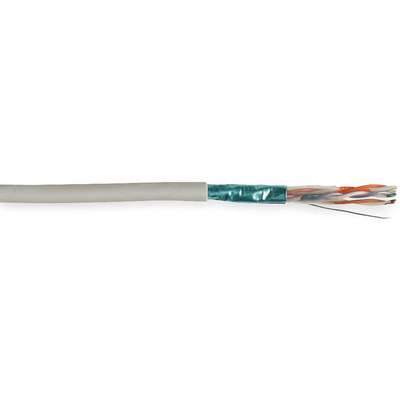

Genspeed Shielded Category Cable, Jacket Color: White, Number of Conductor Pairs: 4, 1000 ft. Length
Hover over image to magnify
#927614-9 | Pkg Qty: 1
$408.00 pkg | $408.00 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bend Radius
1 in.
Outside Diameter
1/4 in.
Brand
GENSPEED
Package Quantity
1
Category Type
5e
Package Type
Spool
Conductor Size
24 AWG
Packaging
Spool
Data Cable Category
5e
Plenum Rated
No
Frequency
100 MHz
Pulling Force
25 lb.
Installation Temperature Range
0 to 60C
Shielded
Yes
Item
Category Cable
Shielded/Unshielded
Shielded
Jacket Color
White
Shipping Weight
35 lb.
Jacket Material
PVC
Solid / Stranded
Solid
Length
1000 ft.
Spool Length
1000 ft.
Low Temperature Rating (Deg. C)
0 For Installation, -10 for Operation
Standard
UL And cUL Type CMR, ANSI/TIA/EIA 568B, ANS/ICEA S-90-661,NEMA WC63.1
Mfr. Part Number
2133774E
Total Number of Conductors
8 (4 Pair)
NEC Article/Type
800 CMR
UL Type
Riser
Number of Conductor Pairs
4
Wire Size
24 AWG
Operating Temperature Range
-20 deg. C to 75 deg. C
Wire/Cable Jacket Material
PVC
General
Category - Data Cable
5e
Operating Temp. Range
-20° to 75°C
Conductor Size - Data Cable
24 AWG
Package Type - Data Cable
Spool
Fire Rating - Data Cable
Riser
Shielded / Unshielded
Shielded
Installation Temp. Range
0° to 60°C
Standards
NEC/CEC Type CMR, ANSI/TIA/EIA 568B, ANS/ICEA S-90-661,NEMA WC63.1
Jacket Material - Wire and Cable
PVC
Total Number of Conductors - Data Cable
8 (4 Pair)
NEC Article and Type
800 CMR
UL Types
Riser
Product Description
Category Cable
- ANSI/TIA/EIA 568A ANSI/ICEA S-90-661 NEMA WC63.1 Solid conductor Carton/spool cable length: 1000 ft. Riser Cable Type MPR/CMR cables have flame-retardant PVC jackets with sequential foot markings. They are intended for installation in risers and general horizontal applications when installed in accordance with NEC Article 800-51(g). Cat 5e
- 24-ga. conductors 100 Mbps, 155 Mbps, and Gigabit Ethernet 100 and 1000 Base-T 52/155 Mbps ATM All pair counts meet Cat 5e Power Sum backbone transmission requirements; suitable for high-speed data transmission. Category Types
