VALTERRA

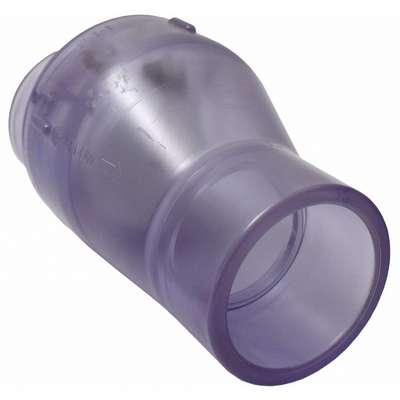

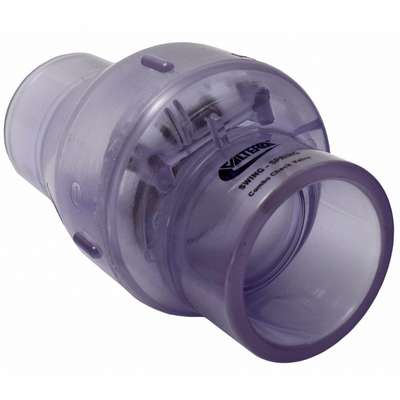

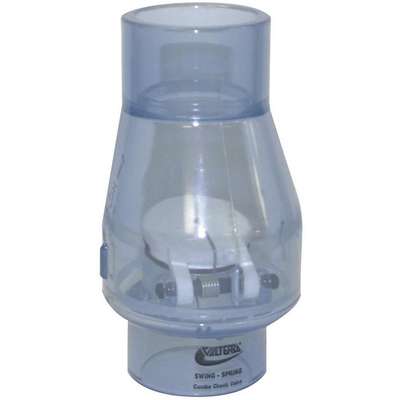

1-1/2" Check Valve, Archetype: Single, Inline Spring Swing, Slip x Slip
Hover over image to magnify
#927608 | Pkg Qty: 1
$29.17 pkg | $29.17 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
VALTERRA
Mfr. Part Number
200-C15
Connection Type
Slip x Slip
Mounting Position
Horizontal
Item
Check Valve
Overall Height
6-7/64 in.
Length
3-13/32 in.
Package Quantity
1
Material
PVC
Shipping Weight
.62 lb.
Maximum Temperature
73 deg. F
Width
3-13/32 in.
General
Application - Valves
General Purpose
Max. Water Pressure - Valves
150 psi
Body Material - Valves
PVC
Mechanism and Body Design
Inline Spring Swing
Flow - Valves
150 gpm
Min. Temp. - Valves
35 Degrees F
Flow Design
Single
Mounting Orientation
Horizontal
Max. Temp. - Valves
73 Degrees F
Pipe or Tube Size
1 1/2 in
Product Description
Full-flow design eliminates the restriction of a spring center poppet in this Valterra check valve. Model combines the benefits of a spring and a swing check valve, and it allows up to 15% more flow than a comparable spring check valve. 316 stainless steel spring.
Item Barcode
Check Valve,1-1/2in,Slipxslip,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 35ZY71 | Check Valve, 1-1/2in, |
 | UNSPSC CODES | 40141622 | |
 | VMRS (ATA) CODES | 053-006-009 | Check Valve, 1-1/2in, |
