DAYTON

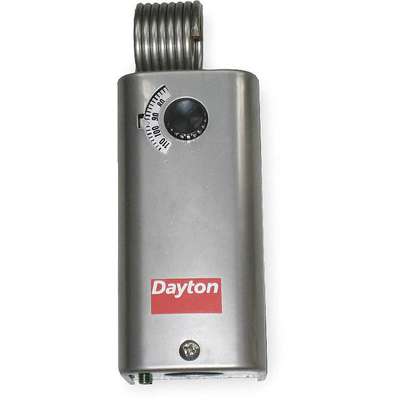

Dayton Line Volt Mechanical Tstat for Heat and Cool, 24 to 600VAC

Hover over image to magnify
Line Voltage T-Stat,30 To 110
PI_Asset_1364365
Line Voltage T-Stat,30 To 110
PI_Asset_1364365

#927601-4 | Pkg Qty: 1

$86.04 pkg | $86.04 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
UL, CUL
Mounting Position
Vertical or Horizontal
Brand
DAYTON
Number of Stages
1
Depth
2-1/8 in.
Package Quantity
1
Differential
3.5°F
Shipping Weight
.85 lb.
Height
4-1/2 in.
Switch Type
SPDT
Item
Line Voltage Mechanical Thermostat
Voltage
24 to 600 VAC
Mfr. Part Number
2NNR9
Width
2-1/8 in.
General
Changeover Type
Automatic
Minimum Control Temperature
30 Degrees F
Compatible System Type
Fan Coil Units
Number of Cooling Stages
1
Contact Rating Resistive @ 120V
22 A
Number of Heating Stages
1
Contact Rating Resistive @ 240V
22 A
Number of Switches
1
Contact Rating Resistive @ 277V
22 A
Pilot Duty Rating
125VA @ 24 to 600V AC
Contact Type
Snap Action
Resistive Amps @ 208V AC
22 A
Differential Type
Fixed
Sensor Diameter
1/8 in
Enclosure Finish
Polished
Sensor Length
36 in
Enclosure Material
Stainless Steel
Sensor Location
Built-In
Enclosure NEMA Rating
NEMA 1
Sensor Type
Hydraulic Air Coil
Features
430 SS and Copper Alloys
Switch Action
Open/Close on Rise
For Use With
Electric Heating Loads, Electric Baseboard, Heat Cable Or Ceiling Panels Or Refrigeration Device Or Motor Driven Ventilator
Switch Type/Action
SPDT, Open/Close on Rise
Includes
Mounting Plate, Screws
Temperature Control Range
30 Degrees to 110 Degrees F
Inductive Amps @ 120V
16 A
Temperature Differential
3.5 Degrees F
Inductive Amps @ 208V
9.2 A
Temperature Scale
Fahrenheit
Locked Rotor Amps @ 120V
96 A
Temperature Sensitivity
+/-3 Degrees F
Locked Rotor Amps @ 240V
48 A
Temperature settings per day
Manual Adjust
Maximum Control Temperature
110 Degrees F
Thermostat Type
Line Voltage

Product Description

These temperature controls are suitable for indoor settings such as livestock barns, garages, or workshops. Their enclosures meet NEMA 1 for use indoors. These controls are compatible with single-stage systems. Single-stage systems have a single output level and allow the system to be either on or off. These controls have an air-coil or bimetal sensor that monitors and regulates the ambient air temperature. The sensing element is not affected by changes in barometric pressure or cross-ambient conditions.

Documents

Dayton Line Voltage Thermostats OIPM
