CLEVELAND

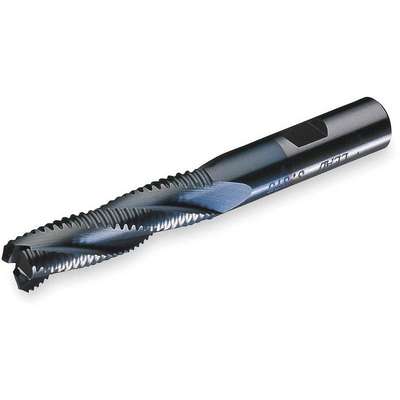

Square End Mill, 1/2" Milling Diameter, Number of Flutes: 4, 2" Length of Cut, TiCN, RG8
Hover over image to magnify
#927594-6 | Pkg Qty: 1
$104.31 pkg | $104.31 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CLEVELAND
Helix Angle
30 deg.
Chip-Breaker
Yes
Item
Square End Mill
Corner Radius
0.000 in.
Length of Cut
2 in.
Cut
Right Hand
List Number
RG8-TC
Cutting Direction
Right
Material
Cobalt
Cutting Direction
Right Hand
Mfr. Part Number
C31299
Cutting Type
Center
Milling Diameter
1/2 in.
Diameter
1/2 in.
Neck Length
Not Applicable
Dimension Type
Fractional Inch
Number of Flutes
4
End
Single
Overall Length
4 in.
End Mill Application
Roughing
Pack Quantity
1
End Mill Cutting Type
Center Cutting
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Steel
End Mill Material
Cobalt
Shank Diameter
1/2 in.
End Style
Square
Shipping Weight
.18 lb.
Finish
TiCN
Single End/Double End
Single End
Grade
General Purpose
Type
Roughing, Coarse Pitch
General
Application
For Aluminum, Brass, Copper, High SI Cast Aluminum and Light Alloys
Measurement System
Fractional Inch
Drilling Tool Configuration
Individual
Milling Dia.
1/2 in
End Mill Style
Square
Primary Material Application ISO Code
N, P
Finish - Machining
TiCN
Shank Dia.
1/2 in
Material - Machining
Cobalt
Shank Type - Machining
Weldon Flat
Material Grade - Machining
General Purpose
Product Description
The TiCN coating on these end mills protects them from wear and is harder and more wear-resistant than a TiN coating.
