NICHOLSON

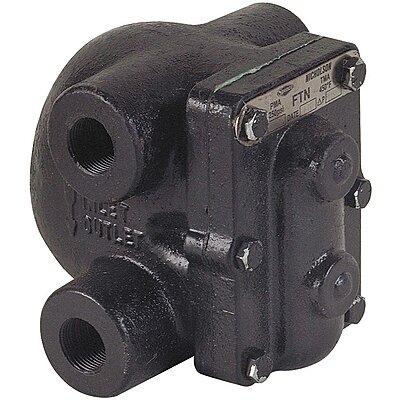

Nicholson Steam Trap, 2" (F)NPT Connections, 9 13/16" End to End Length
Hover over image to magnify
#927590-8 | Pkg Qty: 1
$1,306.26 pkg | $1,306.26 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
NICHOLSON
Maximum Operating PSI
75 psi
Item
Steam Trap
Mfr. Part Number
FTN-C4H9A
Length
9-13/16 in.
Package Quantity
1
Material
Cast Iron
Shipping Weight
30.55 lb.
General
(F)NPT Connections
2 in
End to End Length
9 13/16 in
Condensate Capacity Lbs/Hr
7,700 lb/hr
Max. Temp.
450 Degrees F
Disc Material
Stainless Steel
Pipe Configuration
H Pattern
Downstream PSI Range
0 to 75 psi
Pressure Air Vent
Self-Adjusting
Product Description
Cast-Iron Float and Thermostatic Steam Traps
- Max. temp.: 450°F H-pattern configuration (FTN series) Straight configuration (FTE series)
- 4 possible hook-up combinations (except FTE series), allow installation flexibility for 3/4" and 1" sizes. 1-1/2" and 2" sizes are single inlet and outlet. Stainless steel internals ensure long life and dependable service; thermostatic element allows air and noncondensibles to be vented. For use in heat exchangers, kettles, and other frequently cycling and modulating process equipment.
Item Barcode
Steam Trap,450F,Cast Iron,0 To
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4DXE3 | Steam Trap, 450F,Cast |
 | UNSPSC CODES | 40142503 | |
 | VMRS (ATA) CODES | 053-006-009 | Steam Trap, 450F,Cast |
