HONEYWELL

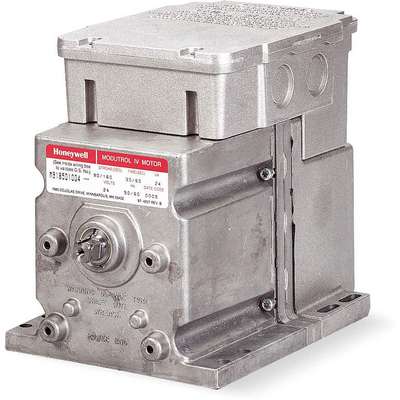

Honeywell 24 VAC Proportional SPST Electric Actuator, -40° to 150°F, 60"-lb., 30 to 60 sec. Nominal @ 60 Hz

Hover over image to magnify
Electric Actuator,60 In.-Lb.,
Electric Actuator,60 In.-Lb.,

#927573-6 | Pkg Qty: 1

$2,062.13 pkg | $2,062.13 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
HONEYWELL
Package Quantity
1
Depth
8-3/4 in.
Shipping Weight
8.15 lb.
Direction
CW
Switch Type
SPST
Height
6-7/16 in.
Torque
60 in.-lb.
Item
Electric Actuator
Voltage
24 VAC
Mfr. Part Number
M8185D1006
Width
5-1/2 in.
Mounting
Remote Mount
General
Ambient Temp. Range
-40 Degrees to 150 Degrees F
Replaces Honeywell Motors
C, D M845A, E and M865B, Mfr. No. M445A
For Use With
Two Wire Thermostats or Other SPST Controllers
Signal Type
Proportional
Includes
NEMA 3 Wiring Box
Spring Return
Yes
Motor Direction
CW
Stroke Deg.
160
Power Consumption
20VA
Timing
30 to 60 sec Nominal @ 60 Hz

Product Description

Electric Actuator, Remote Mount, Yes, Shaft Type 3/8 in Square, Double-Ended, Torque 60 in-lb, Stroke Deg. 160, Height 6 7/16 in, Width 5 1/2 in, Depth 8 3/4 in, Switch Type SPST, Quick-Connect Terminals, Proportional, Motor Direction CW, -40 Degrees to 150 Degrees F, 20VA, Timing 30 to 60 sec Nominal @ 60 Hz, Voltage 24V AC, 20W, Two Wire Thermostats or Other SPST Controllers, Mfr. Part Number: M445A, D M845A, C, E and M865B, Includes NEMA 3 Wiring Box

Item Barcode
9275736
Electric Actuator,60 In.-Lb.,
 NameItemDescription
Grainger DropshipGrainger Dropship278Y15Electric Actuator,60
UNSPSC CODESUNSPSC CODES40101504
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Electric Actuator,60
