FLINT & WALLING

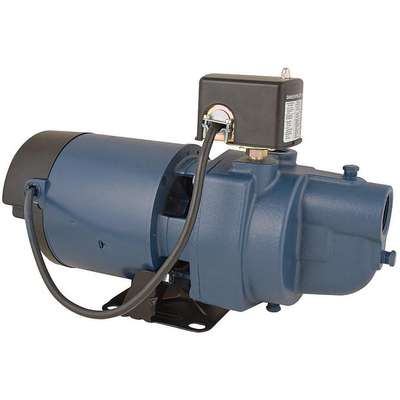

3/4 HP, Shallow Well Jet Pump, 115/230 VAC, Ejector Included Yes

Hover over image to magnify
Jet Pump System,Shallow Well,3/
Jet Pump System,Shallow Well,3/

#927570-5 | Pkg Qty: 1

$850.39 pkg | $850.39 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps
13/6.5 A
Package Quantity
1
Brand
FLINT & WALLING
Pump Material
Cast Iron
Horsepower
3/4
Seal Type
Mechanical
Inlet
1-1/4 in. NPT
Shipping Weight
38.98 lb.
Item
Jet Pump System
Shut-Off
65 psi
Mfr. Part Number
EK07S
Type
Shallow Well
Motor Type
ODP
Voltage
115/230
Outlet
3/4
General
Discharge Standard
NPT
HP
3/4 hp
Ejector Included
Yes
Includes
Pressure Switch
Flow Rate @ 10 Ft. Lift @ 30 PSI
15.0 gpm
Inlet Dia.
1 1/4 in
Flow Rate @ 10 Ft. Lift @ 40 PSI
12.0 gpm
Inlet Standard
NPT
Flow Rate @ 10 Ft. Lift @ 50 PSI
9.0 gpm
Max. Case Pressure
150 psi
GPM of Water @ 15 Ft @ 30, 50 PSI
11.7/3.8
Max. Suction Lift
25 ft
GPM of Water @ 25 Ft @ 30, 50 PSI
5.8/2
Rated Voltage
115/230V AC
GPM of Water @ 5 Ft @ 30, 50 PSI
15/5.8
Shut Off Pressure
65 psi

Product Description

These shallow-well jet pumps supply water from wells up to 25-ft. deep and eliminate the need to connect to a municipal water source. They are mounted above ground for maintenance and repair compared to submersible well pumps that are installed in the well and need to be removed from the well for inspection. Pumps are not subject to pump twisting found in submersible pumps that causes them to strike against and damage the sides of the well casing. They are connected to an ejector, tank, and control panel to automatically supply water as needed.
