ARO

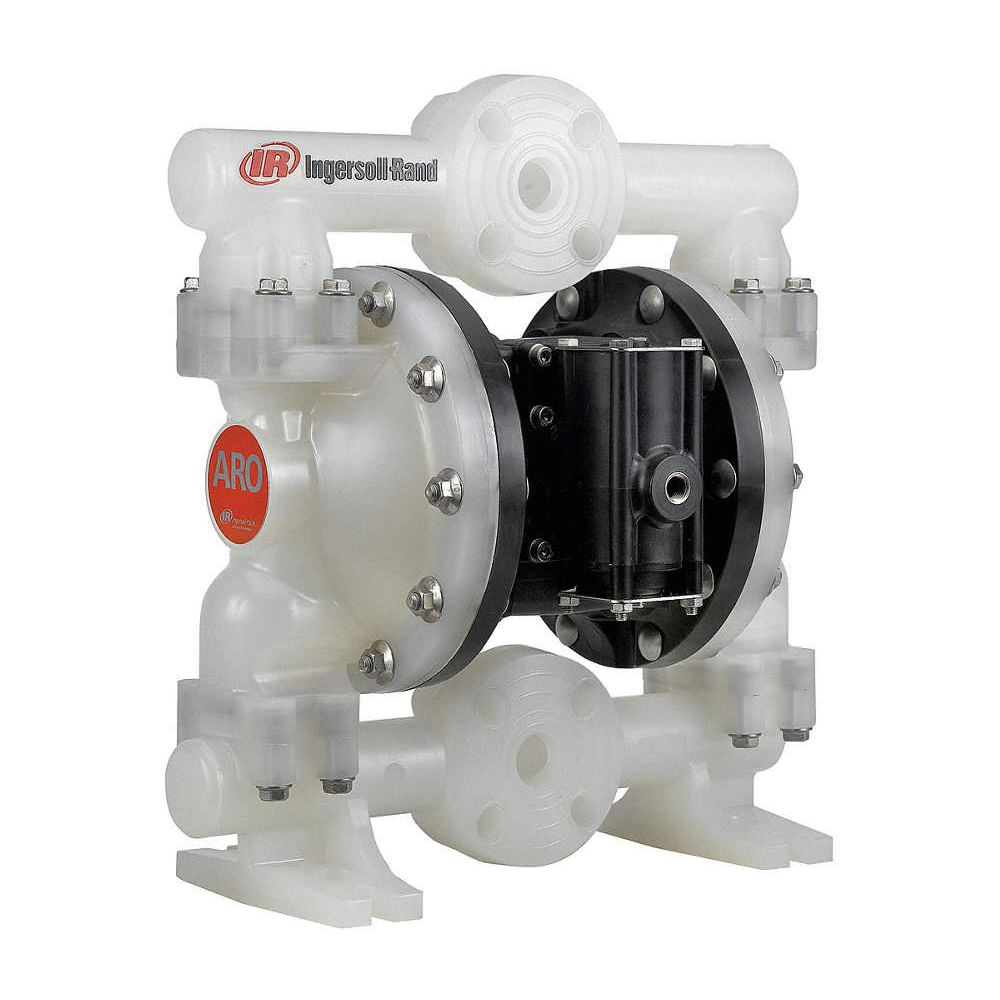

Double Diaphragm Pump: 1 in Inlet/Outlet Size, Flange Connection, 1/4 in FNPT Air Inlet Size

Hover over image to magnify
Diaphragm Pump,Air Operatd,1",
Diaphragm Pump,Air Operatd,1",
Double tap image to magnify
Diaphragm Pump,Air Operatd,1",
Diaphragm Pump,Air Operatd,1",

#927570-4Pkg Qty: 1

$2,630.65 pkg | $2,630.65 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
Agency Compliance
CE, RoHS, REACH
Manifold Connection
Flanged
Air Inlet Size
1/4 in. FNPT
Maximum Diameter Solids
1/8 in.
Ball Material
PTFE
Maximum Flow
53 gpm
Body Material
Polypropylene
Maximum Flow (GPM)
53
Brand
ARO
Maximum Operating PSI
120
Check Seat Material
Polypropylene
Maximum Operating Pressure
120 psi
Connection Style
Flange
Maximum Temperature (Deg. F)
150°F
Diaphragm Design
PTFE
Mfr. Part Number
PD10P-YPS-PTT
Diaphragm Material
PTFE
Mfr. Warranty Length
5 yr.
Flow
53 gpm
Operation Type
Air Operated
Height
14-5/16 in.
Package Quantity
1
Housing Material
Polypropylene
Pump Operation Type
Air Operated
Inlet/Outlet
1 in. ANSI/DIN Center Flange
Self-Priming Dry
19 ft.
Inlet/Outlet Size
1 in.
Shipping Weight
23.58 lb.
Item
Double Diaphragm Pump
Valve Type
Ball
Length
14-3/16 in.
Width
11 in.
General
Diaphragm Material - Pumps
PTFE
Max. Dia. Solids
1/8 in
Housing Material - Pumps
Polypropylene

Product Description

Air-Operated Diaphragm Pumps EXP Series

  • Provide stall-free, ice-free operation. Pumps feature Quick Dump exhaust valves that divert cold exhaust air from ice-prone components to help prevent freezing. Unbalanced air valve design helps avoid stalling issues associated with other pumps. Suitable for wastewater treatment, recirculating plating solutions, bulk transfer, and chemical formulation applications. Flanges are standard ANSI 150# flanges. Flange kits are not included. 5-yr. manufacturer’s warranty.
