DAKE CORPORATION

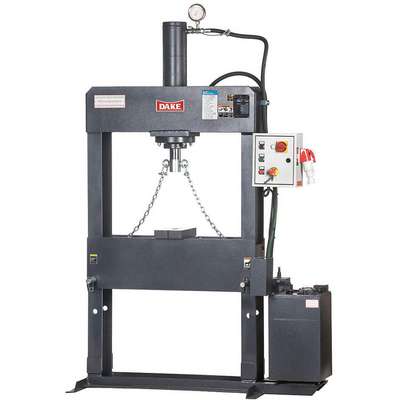

Hydraulic Press, Electric, H Frame, Double Action, 40 tons Frame Capacity, Adjustable Working Height
Hover over image to magnify
#927569-5 | Pkg Qty: 1
$13,505.54 pkg | $13,505.54 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Base Length
63 in.
Overall Width
37 in.
Base Width
27 in.
Package Quantity
1
Brand
DAKE CORPORATION
Phase
3
Characteristics
Heavy Duty
Pressure
40 tons
Cylinder
Fixed
Pump
Rexroth
Cylinder Stroke
19 in.
Pump Type
Electric
Cylinder Type
Double Acting
Ram Travel
13-1/4 in.
Design
H-Frame
Reservoir Capacity
10.5 gal.
Frame Capacity
40 tons
Shipping Weight
1210 lb.
Frame Type
H-Frame
Stroke
19 in.
Height with Screw Extension
88 in.
Total Height
88 in.
Hose Size
Rubber
Total Width
27 in.
Item
Hydraulic Press
Voltage
220/440 V
Mfr. Part Number
972003
Working Height
Adjustable
Overall Height
88 in.
Working Width
27 in.
Overall Length
63 in.
General
Adjustable Bed
Yes
Max. Ram Advance Speed
68 in/min
Application
Bending, Forming, Pressing, Punching, Staking and Clamping, Straightening
Max. Ram Press Speed
7 in/min
Distance Between Uprights
35 in
Max. Ram-to-Table Distance
32 in
Features
Welded Plate Frame
Min. Ram-to-Table Distance
7 in
Includes
Flat Ram Nose, Table Plates, V-Blocks
Voltage 3 Phase
220/440V
Material - Machining
Steel
Width Between Table Channels
8 in
Product Description
Hydraulic Presses
- For pressing, bending, and straightening operations.
- Dake Dura Press - 3-Phase
- Double-acting cylinders are designed with 5-part oil seals for smooth operation. Ram has lifting eyes that attach a chain to hydraulically move the table. Rapid advance of the ram to the workpiece. Speed shifts automatically when contact is made.
Item Barcode
Hydraulic Press,40 t,Electric
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 40F048 | Hydraulic Press,40 t, |
 | UNSPSC CODES | 27121502 | |
 | VMRS (ATA) CODES | 053-006-009 | Hydraulic Press,40 t, |
