HARRINGTON

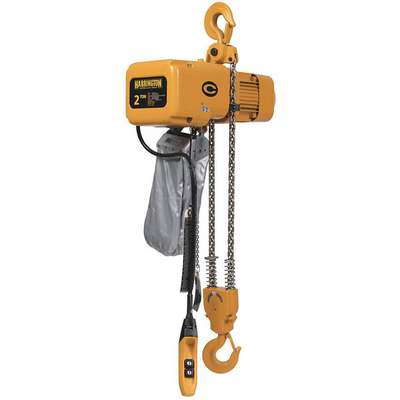

Harrington H4 Electric Chain Hoist, 4000 lb. Load Capacity, 230/460V, 20 ft. Hoist Lift, 7 fpm
Hover over image to magnify
#927545-9 | Pkg Qty: 1
$4,723.40 pkg | $4,723.40 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps @ Low Volts
4.8
Item
Electric Chain Hoist
Brake
DC Current
Lift Speed
7 fpm
Brand
HARRINGTON
Load Capacity
4000 lb.
Classification
H4
Lubrication Type
Oil Bath
Clutch Style
Friction
Mfr. Part Number
NER020C-20
Color Family
Yellow
Mfr. Warranty Length
3 yr., 10 yr. Brake Warranty
Control
110V Push Button Control Pendant
Minimum Between Hooks
27-13/16 in.
Finish
Electrostatic Enamel
Motor HP
1.2
Hoist Lift
20 ft.
Package Quantity
1
Hoist Mount
Hook Mounted - No Trolley
Phase
3
Housing Depth
8-5/16 in.
Reeving
2
Housing Length
16-29/32 in.
Shipping Weight
154 lb.
Housing Width
5-13/32 in.
Thermal Protection
Yes
Hz
60
Voltage
230/460
General
Control Cord
16 ft
Min. Between Hooks
27 13/16 in
Headroom
27-13/64"
Standards
ANSI/ASME B30.16, ASME HST-1, NFPA 70, UL1340 RoHS
Includes
Safety Latch, Safety Standards
Product Description
This Electric Hook Mounted Chain Hoist is operated by electric motors. H4 hoists are suitable for high-volume handling in steel warehouses, machine shops, fabricating plants and mills, and foundries. They are also suitable for manual or automatic cycling operations in heat treating and plating.
