SUMITOMO

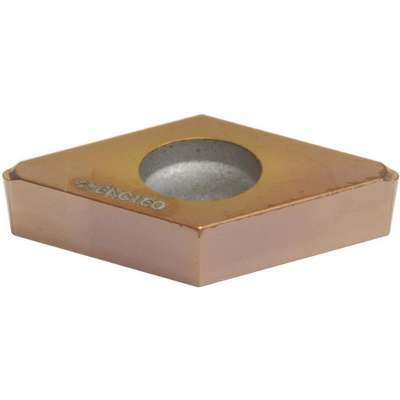

Diamond Turning Insert, Chip-Breaker Code F V, Inscribed Circle 1/4", TiCN
Hover over image to magnify
#927494 | Pkg Qty: 1
$104.96 pkg | $104.96 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
ANSI Code
2NC-DCGT21.50.5FV
Insert Style
DCGT
ANSI Number
2NCDCGT21.50.5FV-BNC2010
Insert Thickness
0.0940 in.
Brand
SUMITOMO
Item
Diamond Turning Insert
Cast Iron Compatibility
No
Mfr. Part Number
2NCDCGT21.50.5FV-BNC2010
Chip-Breaker
Yes
Mounting Hole Diameter
0.11 in.
Coating
CVD
Mounting Style
Screw-On
Corner Radius
0.0079 in.
Non Ferrous Compatability
No
Cutting Direction
Neutral
Nose Radius
0.0039 in.
Cutting Direction
Neutral
Number of Cutting Edges
2
Depth of Cut
0.015 in.
Number of Edges
2
Grade
BNC2010
Pack Quantity
1
Hardened Compatibility
Yes
Primary Material Application
Hardened Steel
ISO Number
2NC-DCGT070202FV
Rake
Positive
Included Angle
55
Shape
Rhombic
Inscribed Circle
1/4 in.
Shipping Weight
0.04 lb.
Insert Application
Finishing
Style
DCGT
Insert Material
CBN
Thickness
3/32 in.
Insert Shape
Diamond
Turning Insert Shape
Diamond
Insert Size
21-1/2
Workpiece Compatibility
Hardened (H), Steel (P)
General
Application
Finishing
For Use With
Toolholders, Boring Bars
Chip-Breaker Code
FV
Insert Holding Type
Countersink Hole
Chip-Breaker Style
Single
Manufacturer Grade
BNC2010
Clearance Angle
7 Degrees
Material - Machining
Carbide
Cutting Application
Turning
Measurement System
Fractional Inch
Features
High Wear Resistance
Primary Material Application ISO Code
H
Finish - Machining
TiCN
Product Description
Diamond Turning Insert, Chip-Breaker Code FV, Inscribed Circle 1/4 in, TiCN, ANSI Code 2NC-DCGT21.50.5FV, Chip-Breaker Style Single, Clearance Angle 7 Degrees
Compliance & Restrictions
WARNING: Cancer - www.P65Warnings.ca.gov.
Item Barcode
Turning Insert,Dcgt,Cbn,21.50
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 52GJ01 | Turning Insert,DCGT, |
 | UNSPSC CODES | 23242105 | |
 | VMRS (ATA) CODES | 053-006-009 | Turning Insert,DCGT, |
