HUBBELL KILLARK

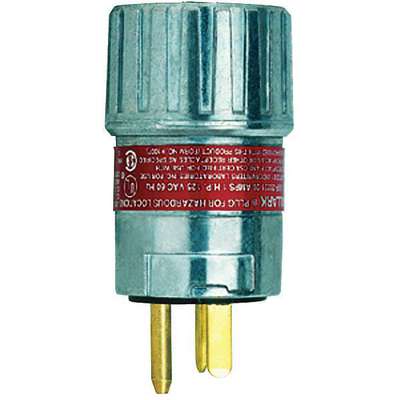

Hubbell Killark Plug, 120 VAC Voltage, 20 Amps, Number of Poles: 2, Number of Wires: 3
Hover over image to magnify
#927488 | Pkg Qty: 1
$166.52 pkg | $166.52 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
20 A
Mfr. Part Number
UGP-20231QW
Amps
20 A
NEMA Configuration - Plugs & Connectors
5-20
Body Length
6-5/8 in.
NEMA Plug Configuration
5-20P
Brand
HUBBELL KILLARK
NEMA Rating
3, 4, 4X
Color Family
Gray
NEMA Type
5-20P
Compatible With
UGP
Number of Blades
3
Connection Orientation
Angled
Number of Poles
2
Current Rating
20 A
Number of Wires
3
For Environment
Corrosive, Damp, Hazardous Location, Wet
Overall Length
6.625 in.
Grounding
Grounded
Package Quantity
1
Hazardous Location Specification
Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
Phase
Single
Horsepower
1 hp
Polarized
No
Housing Color
Gray
Shipping Weight
.4 lb.
Housing Material
Aluminum
Standards
UL E91049
Hz
60
Voltage
120 V AC
IP Rating
Not Rated
Voltage Rating
125V AC
Item
Plug
Wire Connection Type
Screw Terminals
Material
Copper-Free Aluminum
Wiring Style
Standard
Maximum Wire Size
10 AWG
General
Compatible with Series
UGP
NEMA Configuration
5-20
Horsepower Rating
1 hp
Resistance Properties
Corrosion Resistant
Housing Material Finish
Baked Powder Epoxy Coated
Product Description
Plug, Voltage 120 V AC, Hz 60, Amps 20 A, Number of Wires 3, Number of Poles 2, NEMA Type 5-20P, Material Copper-Free Aluminum
Item Barcode
Plug,20A,2P,3W,Ul E91049/
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 10N032 | Plug,20A,2P, 3W,UL E91049/ |
 | UNSPSC CODES | 39121402 | |
 | VMRS (ATA) CODES | 053-006-009 | Plug,20A,2P, 3W,UL E91049/ |
