REELCRAFT

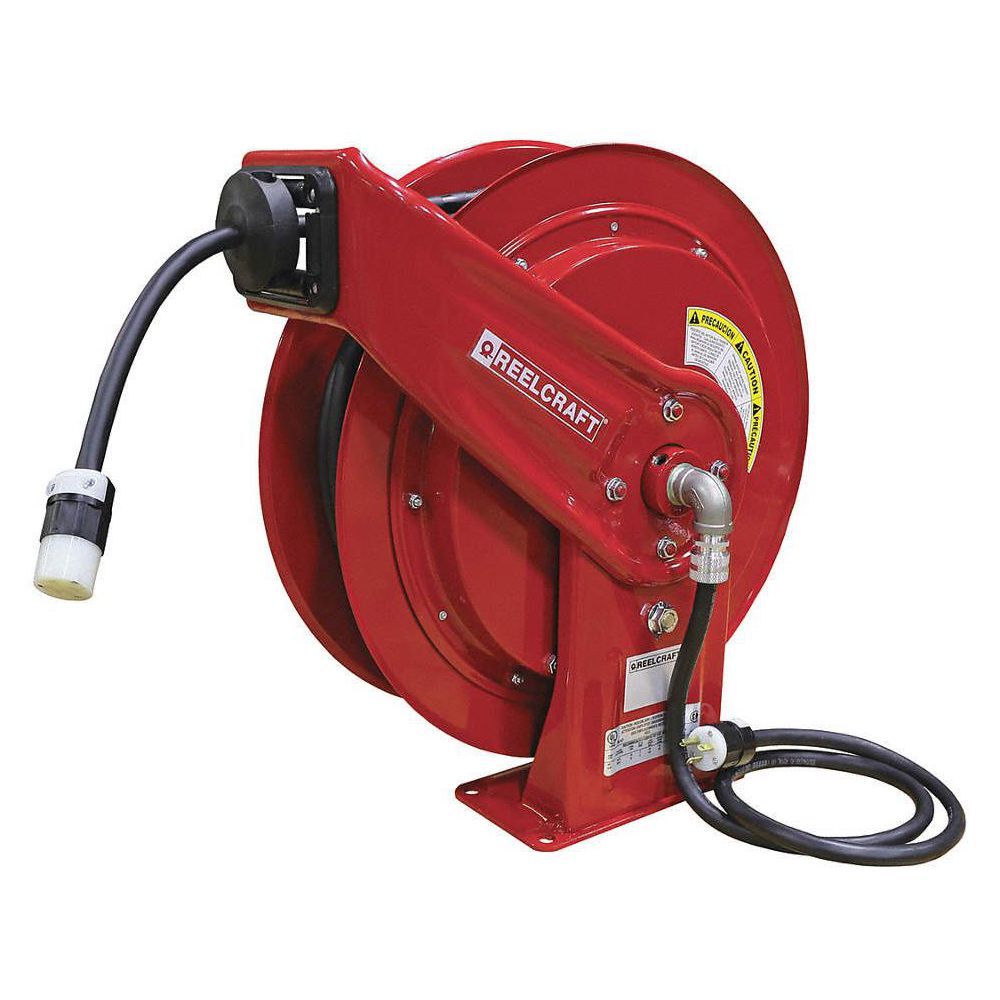

Reelcraft 75 ft. Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Red Reel Color

Hover over image to magnify
Retractable Cord Reel,Red Reel,
PI_Asset_1027788
Retractable Cord Reel,Red Reel,
PI_Asset_1027788
Double tap image to magnify
Retractable Cord Reel,Red Reel,
Retractable Cord Reel,Red Reel,

#927483-5Pkg Qty: 1

$1,432.14 pkg | $1,432.14 ea
This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 31.
|

Technical Specifications

Key Specifications
Brand
REELCRAFT
NEC Cord Designation
SEOOW
Cord Color
Black
Number of Conductors
3
Cord Ending
5-20R
Number of Outlets
1
Cord Ending NEMA Configuration
5-20R
Overall Depth
19-3/4 in.
Cord Included
Yes
Overall Height
20-1/4 in.
Cord Length
75 ft.
Overall Width
11-3/4 in.
Enclosed Reel
No
Package Quantity
1
Enclosure Rating
Not Rated
Reel Color
Red
Feeder Cord Ending
Grounding Connector
Reel Material
Steel
Feeder Cord Ending NEMA Configuration
5-20P
Reel Mounting
Bench, Ceiling, Floor, Wall
Feeder Cord Length
5 ft.
Shipping Weight
75 lb.
Grade
Heavy Industrial
Slip Ring Rating
20A @ 600 V
Indoor/Outdoor
Indoor
Temperature Range
Up to 125 deg. F
Item
Retractable Cord Reel
Voltage
120 VAC
Maximum Amps
20
Watts
2500 W
Mfr. Part Number
L 70075 123 3A
Wire Size
12 AWG
General
Feeder Cord Ending Configuration
NEMA 5-20P
Retractable Cord Ending Configuration
NEMA 5-20R
Gauge/Conductor - Ext. Cords and Outlet Strips
12/3
Standards
UL, CSA
Includes Cord
Yes
Tension Method
Ratchet Lock
Max. Amps - Ext. Cords and Outlet Strips
20.0
Voltage - Ext. Cords and Outlet Strips
120VAC
Retractable Cord Ending
Single Connector
Winding Method
Spring Retraction

Product Description

Self-retracting cord reels have a spring mechanism that automatically winds the cord back on the reel, making them easier to use than hand-winding cord reels. A stop, or ratchet, holds the cord at the desired length after it's pulled out for use. A quick tug on the cord disengages the stop, causing the spring to fully retract the cord. These reels provide access and storage of extension cords while protecting the cord from wear, tangling, and kinking.

Standard cord reels are spools that hold extension cords to provide access and storage while protecting them from tangling, kinking, and other damage. The cord can be extended to exactly the length needed to power equipment located at a distance from a power source. Self-retracting and motor-driven cord reels automatically wind extended cord back on the reel, while hand-winding cord reels have a handle or knob for winding the cord manually. These cords can be mounted out of the way in a central location, such as on a wall or ceiling, to keep a workspace organized and help reduce tripping hazards. They are commonly used in retail, commercial, and manufacturing applications, including pressure washing, landscaping and ground maintenance, and service garages.
