PARKER

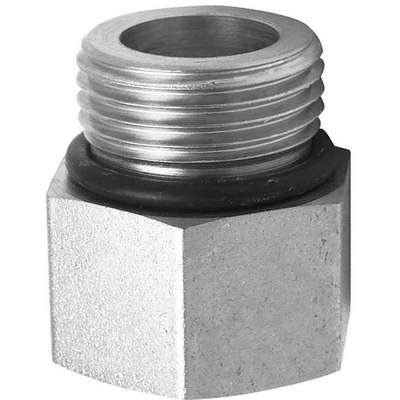

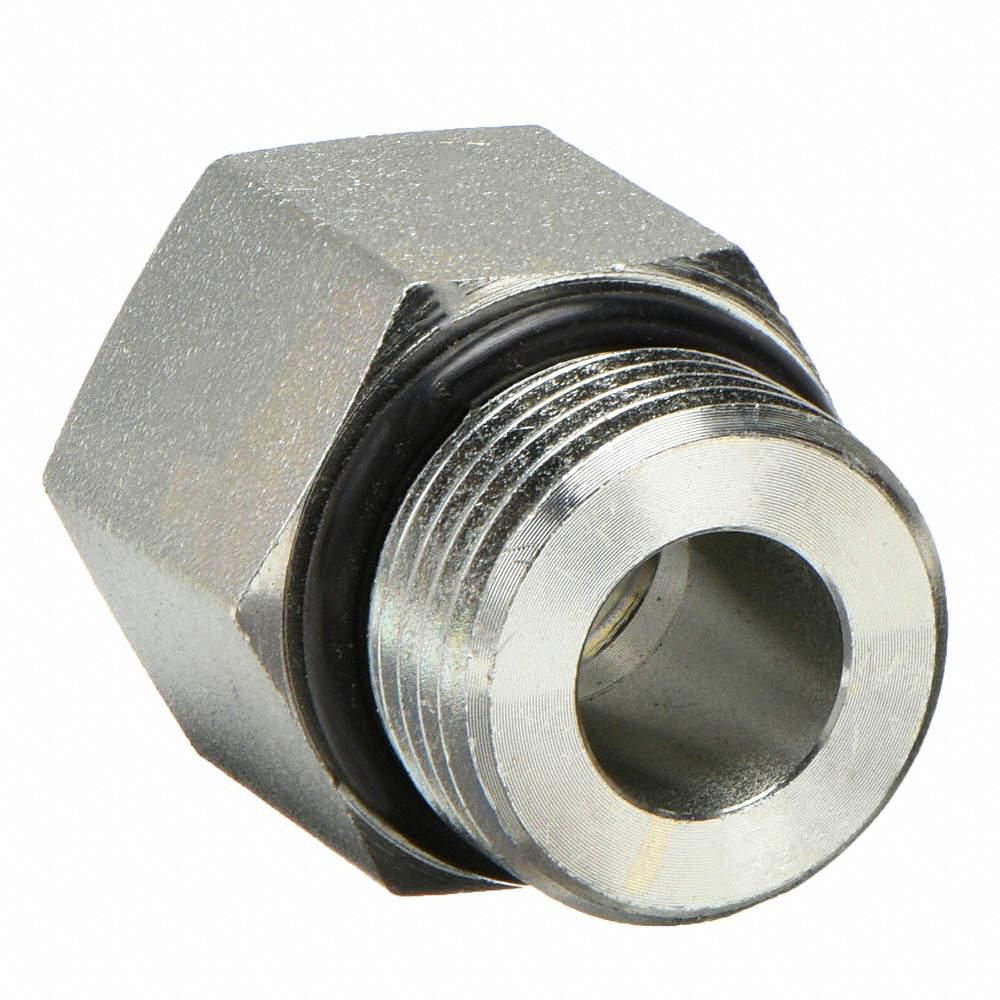

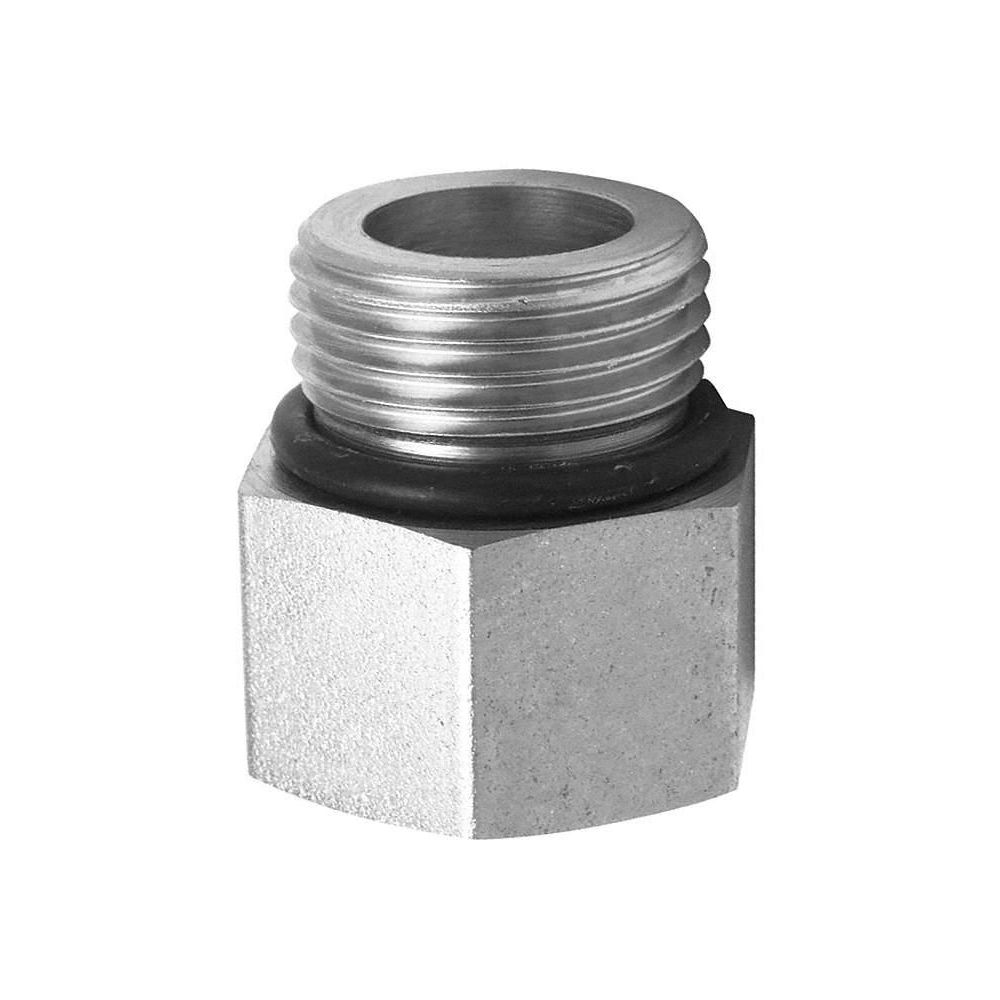

7/16"-20 x 1/4" Conversion Adapter with SAE-ORB x FNPT Fitting Connection Type and 6000 psi Max. Pre

Hover over image to magnify
Conversion Adapter,7/16-20 x 1/
PI_Asset_1028085
Conversion Adapter,7/16-20 x 1/
PI_Asset_1028085
Double tap image to magnify
Conversion Adapter,7/16-20 x 1/
Conversion Adapter,7/16-20 x 1/

#927479-2Pkg Qty: 1

$9.99 pkg | $9.99 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
Brand
PARKER
Package Quantity
1
Item
Conversion Adapter
Shipping Weight
.1 lb.
Mfr. Part Number
4-1/4 F5OG-S
General
Class/Pressure
6,000 psi
Fitting Side B Type
NPT
Finish/Coating
Zinc Plated
Gender
Female, Male
Fitting Connection Type
SAE-ORB x FNPT
Includes Seal
Yes
Fitting Pipe Size
7/16 in x 1/4 in
Pipe Fitting Connection Type
Male SAE-ORB x Female NPT
Fitting Side A Gender
Male
Pipe Fitting Gender
Male Female
Fitting Side A Nominal Pipe Size
7/16 in
Pipe Size - Pipe Fitting
7/16 in -20 x 1/4 in
Fitting Side A Type
SAE-ORB
Pressure Level
Extreme Pressure (3001 psi +)
Fitting Side B Gender
Female
Temp. Range
-30 Degrees to 250 Degrees F
Fitting Side B Nominal Pipe Size
1/4 in
Threading
NPT, SAE

Product Description

Carbon Steel Pipe Conversion Fittings

  • temperature range: -30° to 250°F
  • Feature Chromium-6 free zinc plating with superior corrosion resistance. Suitable for use in fuel, grease, hydraulics, and lubrication applications.
  • Meet ASTM B-117 standards.

Item Barcode

9274792
Conversion Adapter,7/16-20 x 1/
