IFM

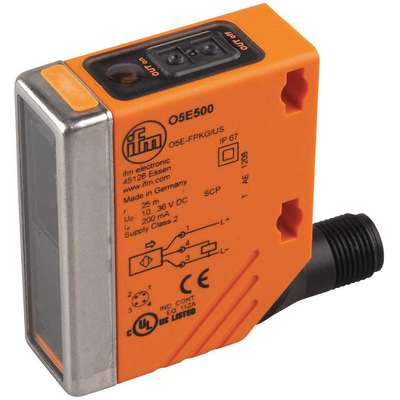

IFM 47mm Selectable Light On/Dark On Rectangular Photoelectric Sensor Transmitter; Sensing Method: Throu
Hover over image to magnify
#927464-8 | Pkg Qty: 1
$104.56 pkg | $104.56 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Polyamides
Minimum Object Size
625mm Dia. Light Spot
Brand
IFM
NEMA Rating
Not Rated
Cable Connection
M12
Operating Frequency
1000 Hz
Circuit Type
NPN/PNP
Operating Modes
Selectable Light On/Dark On
Contact Form
2-Wire
Operating Temperature Range
-2 deg. C to 6 deg. C
Depth
70.3 mm
Output Circuit Type
Transmitter
Electrical Connection
4-Pin M12 Male Connector
Output Mode
Selectable
Height
47 mm
Power Requirement
10 to 36VDC
IP Rating
67
Sensing Method
Through Beam Transmitter
Item
Photoelectric Sensor
Shape
Rectangular
Length
46.8 mm
Shipping Weight
.14 lb.
Light Source
Red LED
Style
Rectangular Photoelectric Sensor Transmitter
Maximum Amps
200m
Temperature Range (Deg. F)
-13 to 140 deg. F
Maximum Load Current
200mA
Type
Through Beam Transmitter
Maximum Sensing Distance
25m
Voltage Range
10-36 VDC
Maximum Sensing Distance - Rectangular Photoelectric Sensor
25.0m
Width
18.2 mm
Mfr. Part Number
O5S500
General
Depth - Rectangular Photoelectric Sensor
70 mm
Output Circuit Type - Rectangular Photoelectric Sensor
Transmitter
Electrical Connection - Rectangular Photoelectric Sensor
4-Pin M12 Male Connector
Power Requirement - Rectangular Photoelectric Sensor
10 to 36V DC
Features
Reverse Polarity Protection, PMMA Lens
Sensing Method - Rectangular Photoelectric Sensor
Through Beam Transmitter
Height - Rectangular Photoelectric Sensor
47 mm
Shape - Rectangular Photoelectric Sensor
Rectangular
Operating Mode - Photoelectric Sensor
Selectable Light On/Dark On
Standards
CCE Approval
Operating Temp. Range
-25° to 60°C
Style - Rectangular Photoelectric Sensor
Rectangular Photoelectric Sensor Transmitter
Operation Mode
Selectable Light On/Dark On
Width - Rectangular Photoelectric Sensor
18 mm
Product Description
This photoelectric sensor offers long sensing ranges and easy setup. It is designed and tested to withstand industrial automation applications such as conveying, material handling, packaging, and automotive assembly. It also features a compact housing and integrated microprocessor-based electronics for high performance.
