MEZIERE

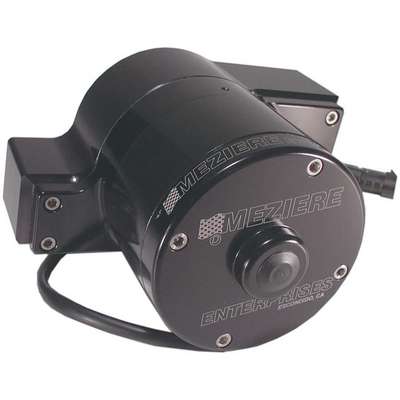

Vehicle Pump: 5/16 hp, 10.1 ft Max Head, 1 1/2 in , 1 in Intake and Disch., NPT, Carbon/Ceramic Seal
Hover over image to magnify
#927452-6 | Pkg Qty: 1
$798.33 pkg | $798.33 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
4/12 A
Liquid Compatibility
H2O/Glycol Mix 50%
Bearing Type
Ball
Maximum Case Pressure
35 psi
Best Efficiency GPM @ Head
25 gpm @ 5.8 ft.
Maximum Fluid Viscosity
320 SSU
Best Efficiency Range GPM @ Head
17.50 to 30 gpm @ 6.90 to 4.60 ft.
Maximum GPM @ Head
40 @ 2.3 ft.
Brand
MEZIERE
Maximum Head
10.1 ft.
Duty
Continuous
Maximum Liquid Temperature
250°F
Duty Cycle
Continuous
Maximum Pressure
35 psi
Flange
No
Maximum Specific Gravity
1.16
GPH of Water @ 5 Ft. of Head
29
Mfr. Part Number
WPX752
GPM @ 1 Ft. of Head
42
Mfr. Warranty Length
1 yr.
GPM @ 7 Feet of Head
17
Minimum GPM @ Head
10 @ 8.2 ft.
GPM of Water @ 0 Ft. of Head
44
Motor Enclosure
ODP
GPM of Water @ 10 Ft. of Head
1
Motor RPM
2200
GPM of Water @ 15 Ft. of Head
0
Motor Type
Brushed
GPM of Water @ 2 Ft. of Head
40-1/2
Outlet Size
1 in. NPT
GPM of Water @ 20 Ft. of Head
0
Package Quantity
1
GPM of Water @ 25 Ft. of Head
0
Phase
1
GPM of Water @ 3 Ft. of Head
36
Pump Height
5-3/4 in.
GPM of Water @ 30 Ft. of Head
0
Pump Length
4 in.
GPM of Water @ 40 Ft. of Head
0
Pump Size
5.8 in.H x 6.7 in. W x 4 in.D
GPM of Water @ 5 Ft. of Head
28-1/2
Pump Width
6-3/4 in.
GPM of Water @ 50 Ft. of Head
0
Screw Material
18-8 Stainless Steel
GPM of Water @ 60 Ft. of Head
0
Seal Application
Long life When not Run Dry or Pumping Abrasives
GPM of Water @ 70 Ft. of Head
0
Seal Material
Carbon/Ceramic
GPM of Water @ 80 Ft. of Head
0
Seal Type
Mechanical
Height
5-13/16 in.
Service Factor
1-1/4
Horsepower
5/16
Shaft Material
Stainless Steel
Housing Material
Aluminum
Shaft Size
1/2 in.
Impeller Material
Aluminum
Shipping Weight
7.05 lb.
Impeller Type
Open
Type
Centrifugal
Inlet
1-1/2 in.
Voltage
12 VDC
Inlet Pressure
30 psi
Volute Material
Anodized Aluminum
Item
Straight Centrifugal High Flow Pump
Wetted Materials
Anodized Aluminum, Stainless Steel, Carbon/Ceramic, Stainless Steel Bearing, Aluminum
Length
6-11/16 in.
Width
4 in.
General
Application
High Flow at Low Head Pressure
Intake and Discharge Size
1 1/2 in , 1 in
Best Efficiency Flow
25 gpm
Manufacturer Warranty Length
1 yr
Best Efficiency Head
6 ft
Maximum Feet of Head
10.1 ft
Compatible Discharge Pipe Size
1 in
NPSHr
30 psi
Compatible Intake Pipe Size
1 1/2 in
Nameplate Voltage
12V DC
Discharge Type
NPT
Priming
Manual
Flow Rate @ 1 ft of Head (Maximum)
42 gpm
Pump Housing Material
Aluminum
Flow Rate @ 10 ft of Head (Maximum)
1 gpm
Pump Housing Material and Motor Enclosure
Aluminum , Open Dripproof
Flow Rate @ 5 ft of Head (Maximum)
28.5 gpm
Shut Off Pressure (Maximum)
35 psi
For Use With
H2O/Glycol Mix 50%
Specific Gravity (Maximum)
1.16
Impeller Design
Open
Wetted Material
Aluminum, Carbon, Ceramic, Stainless Steel
Intake Type
NPT
Product Description
This pump features a preset pressure relief valve and a steel gerotor and double-lip seal. It is designed to provide high flow at low head pressure. It also features a brush motor in an open dripproof (ODP) enclosure.
Item Barcode
Pump,5/16 Hp,1 Ph,12VDC
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 21C953 | Pump,5/16 HP, 1 Ph,12VDC |
 | UNSPSC CODES | 40151503 | |
 | VMRS (ATA) CODES | 053-006-009 | Pump,5/16 HP, 1 Ph,12VDC |
