ASCO

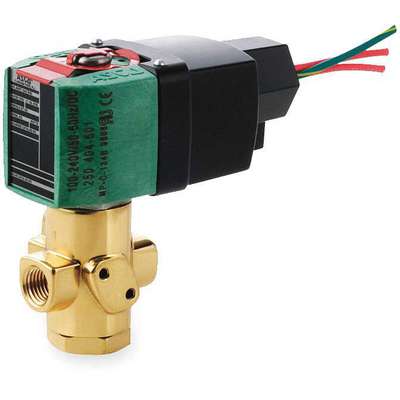

Solenoid Valve: 1/4 in Pipe Size - Valves, 100/240V AC, 0 psi Min. Op Pressure Differential, Brass

Hover over image to magnify
Solenoid Valve,0.09
Solenoid Valve,0.09

#927441-6 | Pkg Qty: 1

$222.02 pkg | $222.02 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
UL, CSA
NEMA Rating
4X
Body Material
Brass
Overall Height
3-45/64 in.
Brand
ASCO
Overall Length
1-13/32 in.
Coefficient of Volume
0.09
Overall Width
1-45/64 in.
Electrical Connections
16 in. Leads
Package Quantity
1
Hz
50/60
Pipe Size
1/4 in.
Item
Solenoid Valve
Shipping Weight
1.7 lb.
Maximum Fluid Temperature
194°F
Valve Design
3-Way/2-Position
Media Type
Air/Inert Gas, Light Oil and Water
Voltage
100/240 VAC
Mfr. Part Number
8320R172 100-240
orifice Dia._spec_s
1/16 in.
General
Application
Car Wash, Air Compressors, Pumps, Laundry Equipment, Industrial Water Control
Max. Operating Pressure Differential Water
160 psi
Body Material - Valves
Brass
Min. Operating Pressure Differential
0 psi
Center Line Pipe Center Size
3 in
Pipe Size - Valves
1/4 in
Coil Enclosure
Molded
Seal Material - Valves
NBR
Coil Insulation Class
H
Valve Configuration
Universal
Max. Operating Pressure Differential Air/Inert Gas
160 psi
Valve Ways and Positions
3-Way/2-Position
Max. Operating Pressure Differential Light Oil
160 psi

Product Description

Providing savings in power usage, this ASCO solenoid valve can lower the total cost of ownership up to 14% during the installed life of the valve. Model features a power management circuit that provides lower power consumption, better pressure and flow ratings, and electrical surge suppression to both the solenoid and electronic controls. Valve can be connected in either Normally Closed or Normally Open position, and can also be used to select 1 of 2 fluids, or to divert flow from 1 port to another.

Item Barcode
9274416
Solenoid Valve,0.09
 NameItemDescription
Grainger DropshipGrainger Dropship53AY50Solenoid Valve,0.09
UNSPSC CODESUNSPSC CODES40141605
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Solenoid Valve,0.09
