MILLER ELECTRIC

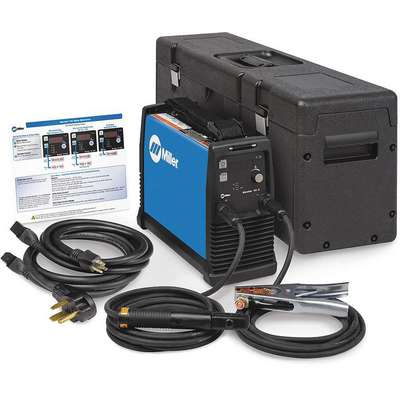

Miller Electric Stick Welder, Maxstar 161 S Series, Input Voltage: 120 V/240 V
Hover over image to magnify
#927430-3 | Pkg Qty: 1
$2,285.00 pkg | $2,285.00 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
160 A
Overall Depth
13-1/2 in.
Brand
MILLER ELECTRIC
Overall Height
10.3 in.
Cord Length
6-1/2 ft.
Overall Width
5.61 in.
Duty Cycle
100%, 160 A @ 26.4V, 20% / 110 A @ 24.4V
Package Quantity
1
Hz
50/60 Hz
Phase
Single-Phase
Input
20
Product Weight
13 lb.
Input Voltage
110/115/120 VAC, 220/230/240 VAC
Rated Output
DC: 110 A/24.4V/30%
Item
Stick Welder
Series
Maxstar 161 S
Mfr. Part Number
907709001
Shipping Weight
36 lb.
OCV
48
Welding Processes
Stick Welding (SMAW)
General
Cable Connection Type
Dinse-Style
Overall Height (In.)
10 19/64 in
Effective Input Current
14.31 A @ 240V AC (Single-Phase), 14.68 A @ 120V AC (Single-Phase), 22.55 A @ 240V AC (Single-Phase), 23.16 A @ 120V AC (Single-Phase)
Overall Width (In.)
5 39/64 in
Electrode Cable Length
13 ft
Rated Output at Duty Cycle (Stick)
110 A @ 100%, 60 A @ 100%, 90 A @ 30%, 160 A @ 60%
Includes
10 ft. Work Cable with Clamp and 25 mm Dinse-Style Connector, 13 ft. Electrode Cable with Holder and 25 mm Dinse-style Connector, Protective X-CASE™
Remote Connection Type
6-Pin (Miller)
Input Voltage (Nominal)
120V, 240V
Stick Welding Output @ Duty Cycle
110 A @ 24.4 V @ 100% (240 V), 160 A @ 26.4 V, 60% (240 V), 60 A @ 22.4 V, 100% (120 V), 90 A @ 23.6 V, 30 % (120 V)
Kit Includes
Case, Stick Electrode Holder with Cable, Work Cable with Clamp
Welder Type
Stick Package w/Case
Max. Amperage Range (Stick)
150 A — 300 A
Welding Mode
CC
Output Amps @100% Duty Cycle
110 A
Welding Range (Amps DC)
20-160
Output Amps @20% Duty Cycle
160A
Work Cable Length
10 ft
Overall Depth (In.)
13 1/2 in
Product Description
Use this Maxstar® Stick Welder for maintenance, repair, and light industrial applications. Includes a 13-ft. stick electrode holder, 10-ft. work clamp with 25mm Dinse-style connector, and 120V and 240V power cords, as well as a protective Miller X-Case™ and an adjustable handle/shoulder strap for safe, easy transport.
Expertly Selected Product Pairings
Documents
Item Barcode
Stick Welder,Series Maxstar
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 53AY42 | Stick Welder, Series |
 | UNSPSC CODES | 23271420 | |
 | VMRS (ATA) CODES | 053-006-009 | Stick Welder, Series |
