JET

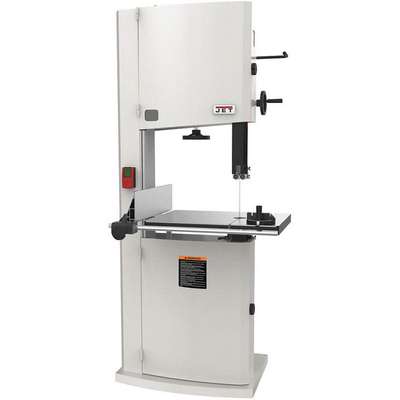

JET JWBS-20-5 Vertical, Stationary Band Saw; 158-1/2 in. Blade Length, 2 Speeds

Hover over image to magnify
Vertical Band Saw,5HP,Wood,
Vertical Band Saw,5HP,Wood,
JET JWBS-20-5 Vertical, Stationary Band Saw; 158-1/2 in. Blade Length, 2 Speeds Video

#927383-4 | Pkg Qty: 1

$4,628.19 pkg | $4,628.19 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Blade Length
158-1/2 in.
Operation
Manual
Blade Thickness
0.026 in.
Orientation
Vertical
Brand
JET
Overall Depth
37 in.
Current Rating
22.0 A
Overall Height
88 in.
Horsepower
5 HP
Overall Width
33-1/8 in.
Hz
60 Hz
Package Quantity
1
Item
Stationary Band Saw
Phase
1
Material Application
Wood
Shipping Weight
688 lb.
Mfr. Part Number
JWBS-20-5
Voltage
230V AC
Number of Speed Settings
2
General
Blade Wheels Dia.
20-1/4 in.
Miter Angle Range
5 Degrees Left to 45 Degrees Right
Cutting Capacity Square
6 in.
Rectangular Cutting Capacity - Horizontal
20 in. x 16 in.
Includes
Bracket, Fence Body, Guide Rail, Handwheel with Handle, Lifting Ring, Miter Gauge Assembly, Resaw Fence, Table, Table Insert
Round Cutting Capacity - Horizontal
6 in.
Max. Blade Width
1-1/2 in.
SFPM Range
2,530 to 4,850
Min. Blade Length
157-7/64 in.
Table Dimensions
27-1/2 in. x 20 in.
Min. Blade Width
1/8 in.
Throat Depth - Vertical
20 in.

Product Description

Cutting Book Matched Panels, Dual Position Side Plate Tool-Less, Four Sided Guide Post with Rack, Independently Adjustable, Micro Adjustable, Pinion Adjustment for Optimum Blade Support, Precision Ground Cast Iron Table for Added Stability and Work Support Fence System, Resaw Capacity for Cutting Large Pieces of Wood, Slicing Veneers, Upper and Lower Ball Bearing Guides Rigid

Item Barcode
9273834
Vertical Band Saw,5HP,Wood,
 NameItemDescription
Grainger DropshipGrainger Dropship52JT21Vertical Band Saw,5HP,
UNSPSC CODESUNSPSC CODES27112709
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Vertical Band Saw,5HP,
