SOUTHWORTH

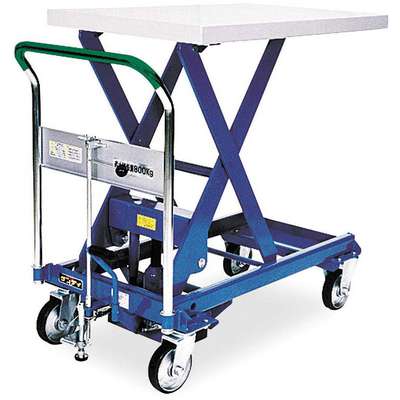

Mobile Manual Lift, Manual Push Scissor Lift Table, 1100 lb. Load Capacity, Lifting Height Max. 36-1

Hover over image to magnify
Scissor Lift Cart,1100 Lb.,
Scissor Lift Cart,1100 Lb.,

#927371-3 | Pkg Qty: 1

$1,816.43 pkg | $1,816.43 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
SOUTHWORTH
Lifting Height Maximum
36-19/32 in.
Caster Diameter
5 in.
Lifting Height Minimum
11-51/64 in.
Caster Type
(2) Rigid, (2) Swivel with Lock
Load Capacity
1100 lb.
Caster Wheel Diameter
5 in.
Lowered Height
11-51/64 in.
Caster Wheel Type
(2) Rigid, (2) Swivel with Lock
Mfr. Part Number
A-500
Frame Material
Steel
Mobile/Stationary
Mobile
Item
Scissor Lift Table
Package Quantity
1
Lift Control
Foot Pump
Platform Style
Fixed
Lift Mechanism
Hydraulic
Platform Width
23-5/8 in.
Lift Mobility
Manual Lift, Manual Push
Powered By
Hydraulic
Lift Table Item
Scissor Lift Table
Raised Height
36-19/32 in.
Lift Table Platform Style
Fixed
Shipping Weight
194 lb.
General
Brake Type
Floor Lock
Overall LxWxH
42 in x 23 1/2 in x 37 3/4 in
Caster Dia.
5 in
Platform Gauge
7 ga
Caster Wheel Dia.
5 in
Platform LxW
35 3/4 in x 23 1/2 in
Elevation per Stroke
1/2"
Platform Type
Solid
Includes
Comfort Grip Padding
Scissor Type
Single
Lifting Height Max.
36 19/32 in
Wheel Configuration
(2) Swivel , (2) Rigid with Floor Lock
Lifting Height Min.
11 51/64 in
Wheel/Tread Material
Polyurethane

Product Description

Dandy Lift™ features self-locking lowering control for precise lowering. Lowered and raised heights are measured with platform in level position. Includes hydraulic foot pump. Hydraulic foot pump provides smooth operation, while a down speed control valve and an internal hydraulic velocity fuse in each cylinder assure excellent control. With 4 easy-rolling polyurethane casters (2 rigid and 2 swivel with brake).

Item Barcode
9273713
Scissor Lift Cart,1100 Lb.,
 NameItemDescription
Grainger DropshipGrainger Dropship4YZ96Scissor Lift Cart,1100 lb.
UNSPSC CODESUNSPSC CODES24101604
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Scissor Lift Cart,1100 lb.
