CARLING TECHNOLOGIES

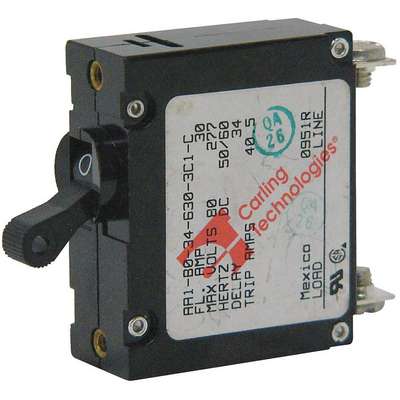

Carling Technologies Circuit Breaker, Magnetic Circuit Breaker Type, Toggle Switch Type, Number of Poles: 1
Hover over image to magnify
#927334-3 | Pkg Qty: 1
$20.50 pkg | $20.50 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Voltage Rating
250/277VAC
Maximum Air Rating
2kA at 120VAC
Actuator Color
Black
Maximum DC Voltage
80
Air @ 120 VAC
2kA
Maximum Wire Size
Not Specified
Air @ 125 VDC
Not Rated
Mfr. Part Number
AA1-B0-34-610 -5D1-C
Air @ 240 VAC
0.2kA
Mounting Type
Threaded Insert
Air @ 277 VAC
Not Rated
Number of Poles
1
Air @ 65 VDC
7.5kA
Package Quantity
1
Amps
10 A
Panelboard Mounting
Bolt-On
Brand
CARLING TECHNOLOGIES
Phase
Single
Circuit Breaker Type
Magnetic
Shipping Weight
.15 lb.
Curve Type
Medium
Switch Type
Toggle
DC Voltage Rating
80VDC
Terminal Connection
#10-32 Screw
Depth
2.03 in.
Type
Bolt On
Item
Panel Mount Circuit Breaker
Voltage
125VAC
Length
2 in.
Width
3/4 in.
General
AIR @ 120VAC
2kA
Max. Operating Temp.
185°F
AIR @ 240VAC
0.2KA
Min. Operating Temp.
-40°F
AIR @ 65VDC
7.5kA
Panel Cutout Size
2.187 in x 0.770 in
Actuator Legend
On/Off
Standards
UL 1077/CSA Accepted
Circuit Breaker Actuator
Toggle
Product Description
Panel-Mount Circuit Breakers
- Magnetic Trip
- Functionally equal: Heinemann, Sensata, Airpax, and Potter & Brumfield
- Designed for world market applications requiring extra insulation and tongue/groove half-shell construction. Series trip design. Trip point is not affected by temperature fluctuations. UL Recognized and CSA Certified.
Item Barcode
Circuit Breaker,Magnetic,10A,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 10C590 | Circuit Breaker, |
 | UNSPSC CODES | 39121601 | |
 | VMRS (ATA) CODES | 053-006-009 | Circuit Breaker, |
