Home All Products Hardware Building Hardware Keyless Entry Mechanical Keyless Access Control Locks SKU: 927319

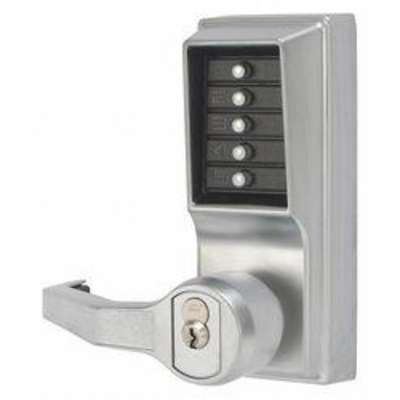

Mechanical Push Button Lockset, 5 Button, Vandal Resistant, Entry with Key Override, Satin Chrome

Name: Mechanical Push Button Lockset, 5 Button, Vandal Resistant, Entry with Key Override, Satin Chrome
Brand: SIMPLEX
SKU: 9273190
Price: 746.85 USD
Availability: InStock

Hover over image to magnify

#927319 | Pkg Qty: 1

$746.85 pkg | $746.85 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

ADA Compliance

Yes

Item

Mechanical Push Button Lockset

Brand

SIMPLEX

Mfr. Part Number

LL1021S26D41

Case Material

Zinc

Mfr. Warranty Length

3 yr.

Door Plate Thickness

1-3/8 in. to 2-1/4 in.

Outside Depth

3-13/16 in.

Finish

Satin Chrome

Outside Height

7-3/8 in.

Function

Entry with Key Override

Outside Width

3-1/8 in.

Hand

Left

Package Quantity

Handle Type

Lever

Series

L1000

Inside Depth

2-3/8 in.

Shipping Weight

10.55 lb.

Inside Height

9 in.

Weather Resistant

Yes

Inside Width

3-1/4 in.

General

ADA Compliant

Yes

Key Override Options

Replaceable Core Schlage

Accepts

Schlage Core

Keypad

5 Button, Vandal Resistant

Backset

2-3/4 in.

Latch Front Size

1/2"

Door Thickness

1-3/8 in to 2-1/4 in

Latch Length

1/2 in

Electrical/Mechanical

Mechanical

Max. Proximity Range

At Lock

Fire Rated

3 hr

Max. User Codes

For Use With

Schlage R/C

Operating Temp. Range

-31° to 151°F

Includes

Code Change Plug, Manual, Required Installation Hardware, Template

Standards

ANSI 156.2

Product Description

Mechanical Push Button Lockset, Handle Type Lever, Function Entry with Key Override, Key Override Options Replaceable Core Schlage, Hand Left, Finish Satin Chrome, Door Thickness 1-3/8 in to 2-1/4 in, Keypad 5 Button, Vandal Resistant, Backset 2-3/4 in, ADA Compliant Yes, 3 hr Fire Rated, Case Material Zinc, Series L1000, Latch Length 1/2 in, Max. User Codes 1, Standards ANSI 156.2, Weather Resistant Yes, Includes Template, Manual, Required Installation Hardware, Code Change Plug, Mechanical
