Home All Products Fluid Transfer & Pumps Water Pumps Engine Driven Pumps Portable Engine Driven Pumps SKU: 927308
Share
Print
BANJO

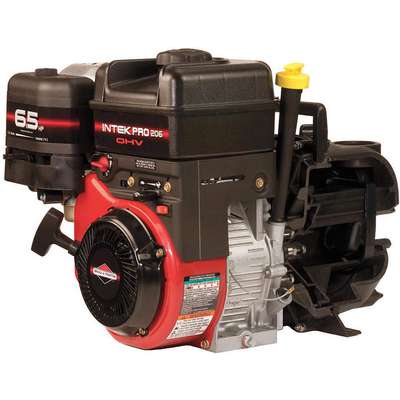

6.5 HP Polypropylene 208cc Engine Driven Centrifugal Pump, 4 qt. Tank Capacity

Hover over image to magnify
Pump, Engine Driven, 6-1/2 Hp,
Pump, Engine Driven, 6-1/2 Hp,

#927308 | Pkg Qty: 1

$590.12 pkg | $590.12 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
EPA
Impeller Type
Open
Brand
BANJO
Inlet
2 in. NPT
Casing Adapter
Polypropylene
Item
Engine Driven Centrifugal Pump
Check Valve
EPDM
Length
19-1/2 in.
Engine Brand
Briggs & Stratton
Material of Construction
Polypropylene
Engine RPM
3600
Maximum Head
120 ft.
Engine Size
208 cc
Maximum Pressure
55 psi
Engine/Motor Type
Gas
Maximum Suction Lift
15 ft.
Fuel Type
Gasoline
Mechanical Seal
Carbon, Ceramic
GPM of Water @ 10 Ft. of Head
200
Mfr. Part Number
200P6PRO
GPM of Water @ 100 Ft. of Head
78
NPT Port
2
GPM of Water @ 20 Ft. of Head
190
Number of Impellers
1
GPM of Water @ 30 Ft. of Head
180
Outlet
2 in. NPT
GPM of Water @ 40 Ft. of Head
160
Package Quantity
1
GPM of Water @ 50 Ft. of Head
150
Roll Bar Frame
None
GPM of Water @ 60 Ft. of Head
140
Seal Material
EPDM
GPM of Water @ 70 Ft. of Head
135
Self-Priming
Yes
GPM of Water @ 80 Ft. of Head
115
Sensor Type
None
GPM of Water @ 90 Ft. of Head
107
Shipping Weight
50 lb.
Height
15 in.
Tank Capacity
4 gal.
Horsepower
6-1/2
Temperature Range
32 deg. F to 150 deg. F
Ignition Type
Solid State
Type
Agricultural
Impeller
Polypropylene
Volute/Wear Plate
Polypropylene
Impeller Material
Polypropylene
Width
9 in.
General
Application
Agricultural
Frame Design - Pumps
No Frame
Discharge Dia.
2 in
HP
6 1/2 hp
Discharge Gender
Female
Impeller Design
Open
Discharge Standard
NPT
Inlet Dia.
2 in
Flow Rate @ 10 Ft. of Head
200.0 gpm
Inlet Gender
Male
Flow Rate @ 20 Ft. of Head
190.0 gpm
Inlet Standard
NPT
Flow Rate @ 40 Ft. of Head
160.0 gpm
Maximum Discharge Pressure
55 psi
Flow Rate @ 60 Ft. of Head
140.0 gpm
Maximum Self-Priming Lift
12.0 ft
Flow Rate @ 80 Ft. of Head
115.0 gpm
Pump Mechanism
Centrifugal

Product Description

These remote-location engine-driven trash and utility pumps are gasoline powered so they don't need to be placed near an electrical outlet, and they run for long periods of time between refueling. They transfer large amounts of water containing medium to large solids, and they drain water using an inlet hose so the pumps don't have to be placed in the water that needs to be drained. Pumps have a tubular frame to protect the engine and the pump.
