WILKERSON

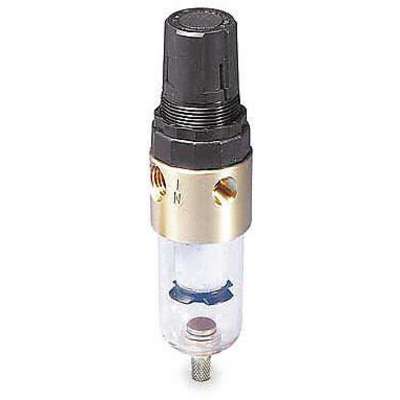

Filter-Regulator: 1/4 in NPT, 16 cfm, 5 micron, 5 psi to 125 psi, 150 psi Max Op Pressure

Hover over image to magnify
Filter/Regulator,6.25 In. H,1.
PI_Asset_1363093
Filter/Regulator,6.25 In. H,1.
PI_Asset_1363093

#927261-7 | Pkg Qty: 1

$55.76 pkg | $55.76 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
WILKERSON
Package Quantity
1
Item
Filter-Regulator
Shipping Weight
.7 lb.
Mfr. Part Number
BB3-02-FK00
General
Adjustment Mechanism
Knob
For Fluid Type
Compressed Air
Adjustment Mechanism Material
Acetal
Gauge Port Size
1/8 in
Adjustment Range - Air Treatment
5 to 125 psi
Includes
Panel Nut
Air Inlet Type
NPT
Max. Flow - Air Treatment
16 cfm
Air Outlet Size
1/4 in
Max. Flow Range - Air Treatment
11 to 20 cfm
Air Outlet Type
NPT
Max. Incoming Pressure - Air Treatment
150 psi
Bowl Material - Air Treatment
Polycarbonate
Maximum Regulated Pressure
125 psi
Bowl Size - Air Treatment
0.4 oz
Minimum Regulated Pressure
5 psi
Connection Size - Air Treatment
1/4 in NPT
Number of Air Inlets
1
Drain Part Compatibility
GRP-96-808
Number of Air Outlets
1
Filter Bowl Capacity
0.4 oz
Pressure Drop
15 psi
Filter Bowl Material
Plastic
Pressure Gauge Port Size
1/8 in
Filter Element Material
Polyethylene
Regulator Type
Relieving
Filter Rating - Air Treatment
5 micron
System Location
Air Line

Product Description

For Max. Flow, the CFM is measured with 100 psig inlet adjusted to a set pressure of 90 psig and a 15 psig pressure drop. WARNING: Product rupture can cause serious injury. Do not connect regulator to bottled gas. The filter/regulator should not be used where strong acids or bases are present or in salt-laden atmospheres.
