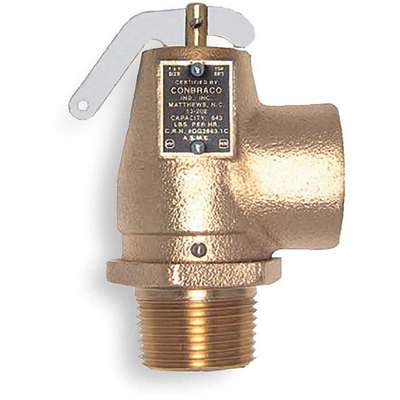

Safety Relief Valve: Cast Bronze, MNPT, FNPT, 3/4 in Inlet Size, 3/4 in Outlet Size, 475,000
Hover over image to magnify
#927259-1 | Pkg Qty: 1
$71.71 pkg | $71.71 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Cast Bronze
Outlet Size
3/4 in.
Brand
APOLLO
Outlet Type
FNPT
Connection Type
MNPT x FNPT
Overall Height
3-11/16 in.
Inlet Size
3/4 in.
Overall Length
2-5/6 in.
Inlet Type
MNPT
Package Quantity
1
Item
Safety Relief Valve
Shipping Weight
1.08 lb.
Mfr. Part Number
13211B15
Temperature Range (Deg. F)
Up to 250 deg. F
General
Application
Low Pressure Steam Heating and Supply Boilers
Standards
ASME Section IV, CRN
Disc Material
EPDM
Test Lever
Yes
Product Description
Low-Pressure Steam Heating Boiler Safety Relief Valves
- Max. temp.: 250°F
- All have top guiding seals and positive condensate drainage for extended service life. Cast-bronze construction with raised EPDM discs and seats; stainless steel springs. MNPT x FNPT connections. Part Numbers: 3EEY1, 3EEY6, and 3EEY7 have MNPT bottom connection and top outlet discharge.
- Meet CRN standards.
Item Barcode
Safety Relief Valve,3/4 In,15
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3EEY2 | Safety Relief Valve, |
 | UNSPSC CODES | 40141606 | |
 | VMRS (ATA) CODES | 053-008-004 | Safety Relief Valve, |
