STENNER
Chemical Metering Pump: 38.80 gpd, 25 psi Max. Pressure - Pumps, 120 VAC, 1/40 hp HP - Pumps
Hover over image to magnify
#927251-9 | Pkg Qty: 1
$512.73 pkg | $512.73 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Plastic
Mfr. Part Number
E20VXCA1S6G1
Brand
STENNER
Minimum Flow Rate
4.4 gpd
Chemical Metering Pump Type
Peristaltic
Minimum Flow Rate (GPD)
4.4
Compliance
UL/c-UL
Motor RPM
Variable
Cord Length
6 ft.
Number of Feeds
1
Description/Special Features
Compact, Multipurpose Peristaltic Metering Pumps with Variable Output Adjustment, Ideal for General Purpose Applications Including Water and Waste Water Treatment
Package Quantity
1
Flow Rate Output Control
Variable
Phase
1
Head/Fitting Material
Plastic
Pump Type
Peristaltic
Height
5-1/2 in.
Reproducibility
+/-5%
Horsepower
1/40
Seals and O-Rings
Buna-N
Hz
60
Self-Priming
Yes
Item
Chemical Metering Pump
Shipping Weight
3.35 lb.
Length
6 in.
Suction Lift
25 ft.
Maximum Flow (GPD)
38.8
Tubing Material
Santoprene
Maximum Flow (GPH)
1.62
Type
Variable Speed
Maximum Flow Rate
1.62 gph
Voltage
120 VAC
Maximum Pressure
25 psi
Width
3-3/4 in.
Maximum Viscosity
100 CPS
cc/Minimum
Variable
General
Features
Variable Output Adjustment
Power Cord
6 ft.
HP - Pumps
1/40 hp
Reproducibility - Pumps
+/-5.0%
Head and Fitting Material - Pumps
Polycarbonate/Polypropylene/PVC
Seals and O-Rings - Pumps
Santoprene
Includes
(1) 20 ft Roll of Suction/Discharge Tubing 1/4 in White, (1) Additional Pump Tube, (1) Injection Fitting or Injection Check Valve, (1) Weighted Suction Line Strainer 1/4 in, (3) Connecting Nuts 1/4 in or 6mm Europe, (3) Ferrules 1/4 in
Standards
UL778
Max. Flow (gpd) - Pumps
38.80 gpd
Tubing Material - Peristaltic Pumps
Santoprene
Max. Pressure - Pumps
25 psi
Voltage - Pumps
120V AC
Max. Viscosity - Pumps
100 cps
cc/Min.
Variable
Phase - Pumps
1
Product Description

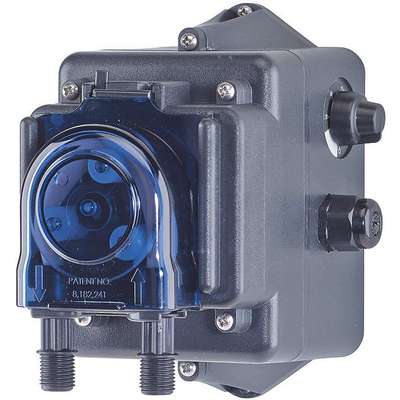

Compact, adjustable, and features an innovative "Quick-Release" head for simple and fast tube change. Santoprene™ peristaltic tubing is FDA-approved and requires no adjustment or lubrication. Ideal for light-duty applications such as injecting chlorine, weak acids, and alkaline solutions.
