DAYTON

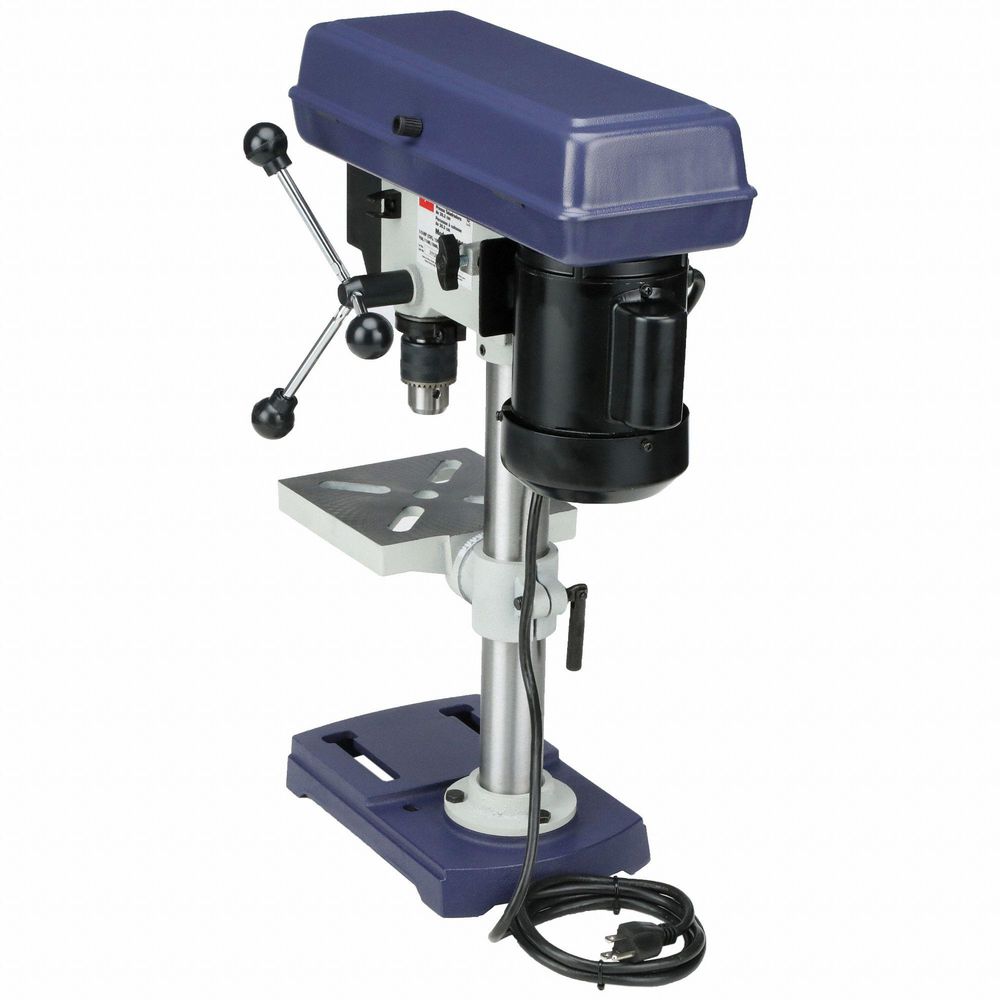

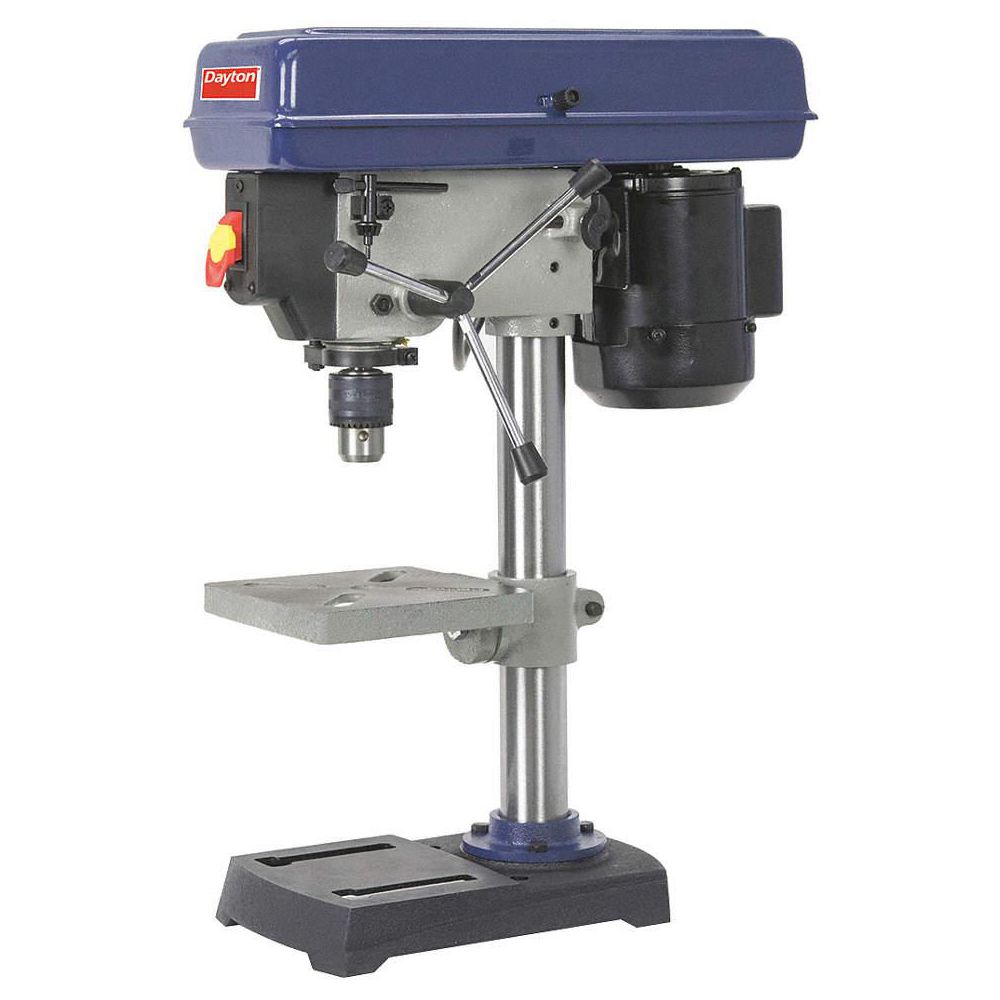

Dayton 1/3 Motor HP Bench Drill Press, Belt Drive Type, 8" Swing, 120 Voltage

Hover over image to magnify
Bench Drill Press,Belt,8",1/3
PI_Asset_3738635
PI_Asset_3738636
Bench Drill Press,Belt,8",1/3
PI_Asset_3738635
PI_Asset_3738636

#927217-6 | Pkg Qty: 1

$296.83 pkg | $296.83 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Application
Countersinking, Drilling, Reaming
Mfr. Part Number
40PM08
Base Length
7 in.
Package Quantity
1
Base Width
10-3/4 in.
Phase
Single
Brand
DAYTON
Primary Material Application
Metal, Wood
Chuck Size
1/2 in.
Shipping Weight
34.1 lb.
Chuck Type
Keyed
Speed Control
Fixed
Current Rating
2.3 A
Swing
8 in.
Drive Type
Belt
Table Shape
Square
Horsepower
1/3 HP
Voltage
120V AC
Item
Bench Drill Press
General
Chuck Style
Keyed
Nominal Voltage
115V AC
Column Diameter
1 13/16 in
Quill Diameter
1 37/64 in
Current
2.3 A
Speed Adjustment
Step Pulley
Downfeed Type
Manual
Speed Range
750 to 3,200 RPM
Drill Press Application
Countersinking, Drilling, Reaming
Spindle Speed Range
750 RPM - 3,200 RPM
Drill Press Type
Benchtop
Spindle Travel
2 in
Drilling Capacity in Cast Iron
1/2 in
Spindle-to-Column Distance
4 in
Drilling Capacity in Steel
1/2 in
Table Length
6 1/2 in
Includes
Chuck with Key
Table Slot
Yes
Maximum Overall Height
23 in
Table Slot Width
1/2 in
Maximum Spindle Speed
3,200 RPM
Table Tilt
45 Degrees Left and Right
Maximum Spindle-to-Base Height
11 1/2 in
Table Width
6 1/2 in
Maximum Spindle-to-Table Height
8 1/4 in
Tilting Angle
45 Degrees and Rotates a Full 360 Degrees
Minimum Spindle Speed
750 RPM

Product Description

General Purpose Drill Presses, Bench Drill Press, Drive Type Belt, Swing 8 in, Spindle Taper 33JT, Motor HP 1/3 hp, Capacity Steel 1/2 in, Capacity Cast Iron 1/2 in, Drilling Capacity Wood Not Specified, Includes Chuck with Key, Power Down Feed Included No, Voltage 120, Amps AC 2.3, Number of Speeds 5, Chuck Size 1/2 in, Spindle Speed 750 to 3200 rpm, Spindle Travel 2 in, Base Size 7 in x 10-3/4 in, Table Work Surface 6-1/2 in x 6-1/2 in, Hz 60, Phase 1, Number of T-Slots 0
