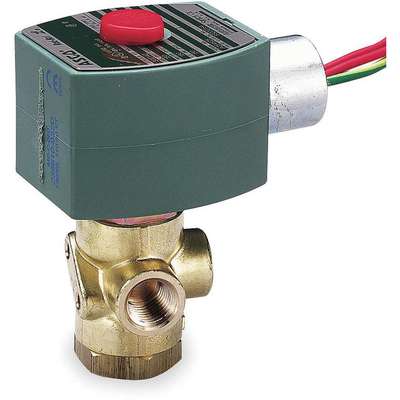

Solenoid Valve: 1/4 in Pipe Size - Valves, 240V AC, 0 psi Min. Op Pressure Differential
Hover over image to magnify
#927214-6 | Pkg Qty: 1
$249.18 pkg | $249.18 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CSA and UL for General Purpose
NEMA Rating
3, 3S, 4, 4X, 6, 6P, 7, 9
Body Material
Brass
Overall Height
3-3/4 in.
Brand
REDHAT
Overall Length
3 in.
Coefficient of Volume
1/4
Overall Width
2 in.
Configuration
Universal
Package Quantity
1
Electrical Connections
1/2 in. Conduit w/18 in. Leads
Pipe Size
1/4 in.
Hz
60
Shipping Weight
1.63 lb.
Item
Solenoid Valve
Valve Design
3-Way/2-Position
Maximum Fluid Temperature
200°F
Voltage
240 VAC
Media Type
Air/Inert Gas, Light Oil and Water
orifice Dia._spec_s
1/8 in.
Mfr. Part Number
EF8320G176
General
Body Material - Valves
Brass
Media - Valves
Air, Inert Gases, Light Oil, Water
Center Line Pipe Center Size
2 3/4 in
Min. Operating Pressure Differential
0 psi
Coil Enclosure
Explosionproof and Watertight
Pipe Size - Valves
1/4 in
Coil Insulation Class
F
Seal Material - Valves
NBR
Environmental Rating - Valves
Explosion Proof, Indoor, Outdoor
Solenoid Valve Product Group
Solenoid Valve
Max. Operating Pressure Differential Air/Inert Gas
50 psi
Valve Configuration
Universal
Max. Operating Pressure Differential Light Oil
50 psi
Valve Ways and Positions
3-Way/2-Position
Max. Operating Pressure Differential Water
50 psi
Product Description
Ideal for the control of air, water, light oil, and non-corrosive media, this REDHAT general service solenoid valve features 3 ports and 2 orifices. When 1 orifice is open the other is closed. Valve has a universal valve configuration and can function as normally closed, normally open, diverter of 1 fluid, or a selector of 2 fluids.
Item Barcode
Solenoid Valve,Brass,Universal,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4ELD4 | Solenoid Valve,Brass, |
 | UNSPSC CODES | 40141605 | |
 | VMRS (ATA) CODES | 053-006-009 | Solenoid Valve,Brass, |
