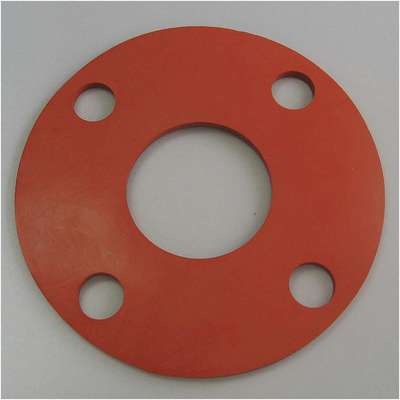

Flange Gasket: 1 1/2 in Pipe Size, 5 in Outside Dia., 1 29/32 in Inside Dia., Red
Hover over image to magnify
#927195-7 | Pkg Qty: 1
$4.26 pkg | $4.26 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
4CYW7
Color Family
Red
Outside Diameter
5 in.
Inside Diameter
1-29/32 in.
Package Quantity
1
Item
Flange Gasket
Pipe Size
1-1/2 in.
Material
Silicone
Shipping Weight
.09 lb.
Maximum Pressure
250 psi
Temperature Range (Deg. F)
-80 to 450 deg. F
Metal Detectable
No
Thickness
1/8 in.
General
Bolt Holes
4
Flange Class
Class 150
Continuous Max. Temp. (F)
450 Degrees F
Standards
ASME B16.21,ASME/ANSI Pressure Class-150 LB
Product Description
Silicone (Red)
Temp. range: -80° to 400°F Excellent performance in extreme temperatures. Made with FDA-approved ingredients. Rubber Flange Gaskets—Full-Face
1/8" thick ANSI sized to fit 150-lb. flat-face and raised-face flanges
Item Barcode
Flange Gasket,Full Face,1 1/
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4CYW7 | Flange Gasket,Full |
 | UNSPSC CODES | 31181510 | |
 | VMRS (ATA) CODES | 053-006-009 | Flange Gasket,Full |
