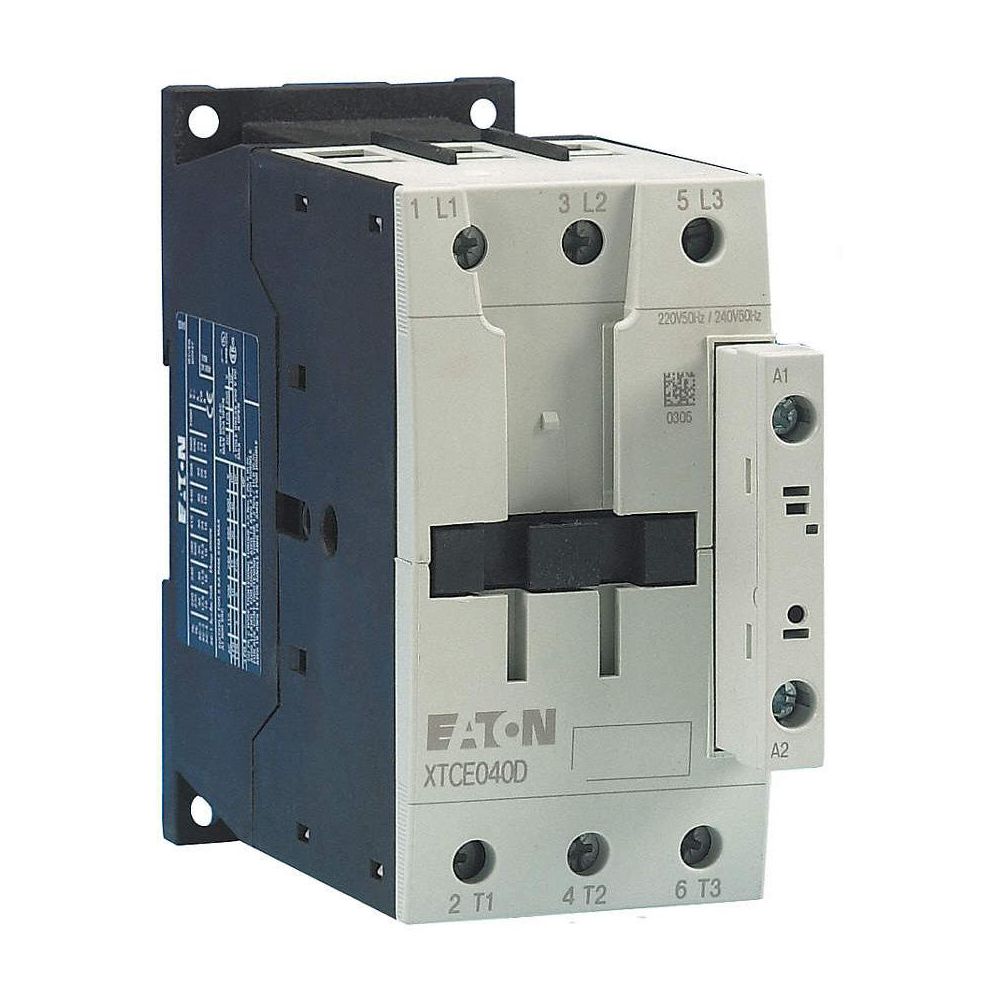

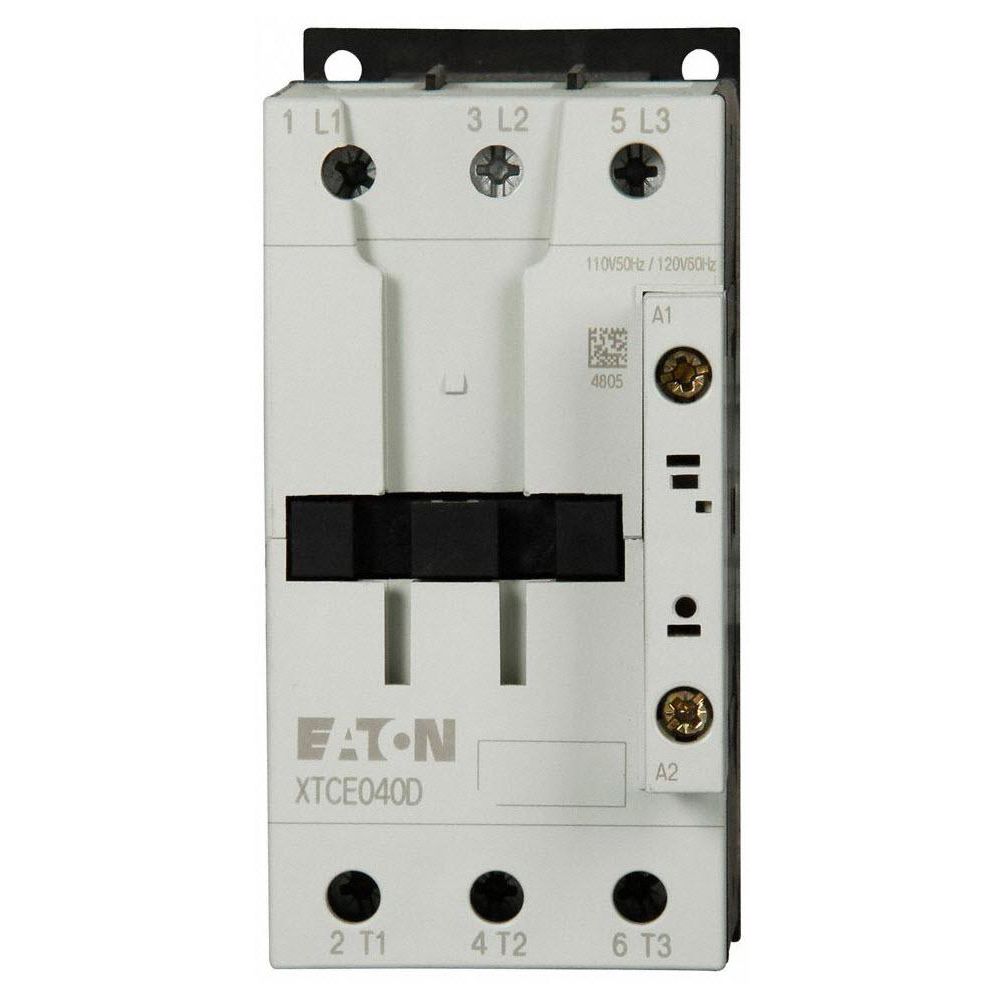

Eaton 240VAC IEC Magnetic Contactor; No. of Poles 3, Reversing: No, 40 Full Load Amps-Inductive

Name: Eaton 240VAC IEC Magnetic Contactor; No. of Poles 3, Reversing: No, 40 Full Load Amps-Inductive
Brand: EATON
SKU: 9271942
Price: 357.11 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#927194-2Pkg Qty: 1

$357.11 pkg | $357.11 ea

In Stock

Shipping to 43085

Expected to arrive Tue. Apr 01.

Technical Specifications

Key Specifications

Action

Nonreversing

Item

IEC Magnetic Contactor

Brand

EATON

Mfr. Part Number

XTCE040D00B

Coil Volts

240 VAC

Number of Poles

Depth

5.2 in.

Package Quantity

Enclosure NEMA Rating

No Enclosure

Reversing

Enclosure Type

Open

Series

Frame D

Height

2.17 in.

Shipping Weight

2.08 lb.

50/60

Width

2.17 in.

General

Contactor Type

IEC

HP @ 3 Phase - 575V

40 hp

Full Load Amps-Resistive

60 A

Standards

UL/CE/CSA/CCC/ATEX/IEC EN 60947

HP @ 1 Phase - 240V

7 1/2 hp

Product Description

IEC Contactors and Overload Relays

IP20 rated Contactors rated: -25° to 50°C Relays rated: -25° to 65°C
Designed for industrial applications, Eaton XT/DIL M Series heavy-duty contactors can be combined with electronic overload relays to make a starter. Reversing contactors are available with screw terminals and panel or DIN-rail mounting. 690VAC max., 50/60 Hz. Feature low-wattage coils, auxiliary contacts, front access coil terminals, toolless assembly, and dual clamps for multiwire. Electronic Overload Relays have selectable trip class and phase unbalance, to protect motor life. Feature 5:1 current adjustment, Class 10A, 10, 20, 30 selectable protection, and are self-powered. Status LED indicates the overload operational status.
UL Listed, CE Approved, and CSA Certified. ATEX Listed and RoHS Compliant.
