HUBBELL WIRING DEVICE-KELLEMS

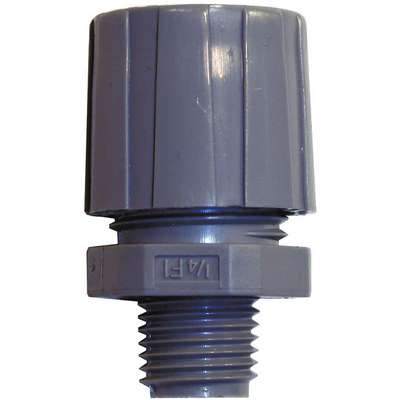

Liquid Tight Cord Connector, 0.19" to 0.25" Cord Dia., 1/4" MNPT Box Connection

Hover over image to magnify
Cord Connector,1/4 In.,
Cord Connector,1/4 In.,

#927154-2 | Pkg Qty: 1

$12.43 pkg | $12.43 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Body Color
Gray
Liquid Tight / Dust Tight
Liquid Tight
Body Material
Nylon
Male/Female
Male
Box Connection
1/4 in. MNPT
Material
Nylon
Brand
HUBBELL WIRING DEVICE-KELLEMS
Maximum Operating Temperature
225 deg. F
Collar Material
Nylon
Mesh Length
No Strain Relief Mesh
Color Family
Gray
Mesh Material
No Strain Relief Mesh
Conduit Size
1/4 in.
Mfr. Part Number
SHC1003CR
Connector Type
Straight
Minimum Operating Temperature
-30 deg. F
Cord Diameter Range
0.19 in. to 0.25 in.
Minimum Throat Diameter
0.33 in.
Gland Color Code
Red
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Hazardous Location Rating
Not Rated
Number of Cords
1
Hub Size
1/4 in.
Overall Length
1-9/16 in.
Hub Trade Size
1/4 in.
Pack Quantity
1
IP Rating
IP66
Shipping Weight
.04 lb.
Insulated
Yes
Thread Size
1/4 in.
Item
Liquid Tight Cord Connector
Thread Type
NPT
Length
1.53 in.
General
Bushing Material
Neoprene
Length - Box to End of Connector
1 1/8 in
Compatible Conduit Trade Size
1/4 in
Liquid Tight
Yes
Compatible Conduit Type
Liquid Tight Cord Connector
Material - Cord Connector
Nylon
Connection Orientation
Straight
Min. Throat Dia.
0.33"
Environmental Rating
Not Flammable, Hazardous Locations
Resistance Properties
Corrosion Resistant
External Strain Relief Length
No External Strain Relief
Standards
in Accordance With Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111
External Strain Relief Material
No External Strain Relief
Strain Relief Type
No External Strain Relief
For Maximum Cable OD
0.25 in
Style - Connector
Straight
For Minimum Cable OD
0.19 in
Thread Gender
Male
For Use With
Kellems Wire Management
Thread-Type
NPT Thread
Form Size
F1

Product Description

Liquid Tight Cord Connector, Cord Dia. Range 0.19 in to 0.25 in, Box Connection 1/4 in MNPT, Material - Cord Connector Nylon, Material - External Strain Relief No External Strain Relief, Gland Color Code Red, Body Color - Cord Connector Gray, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, Length - External Strain Relief No External Strain Relief, Length - Box to End of Connector 1.1 in, Insulated Yes

Item Barcode
9271542
