AIRMASTER FAN

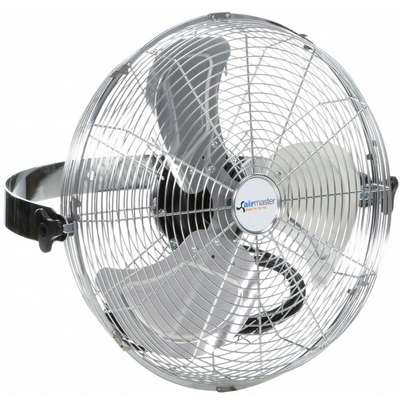

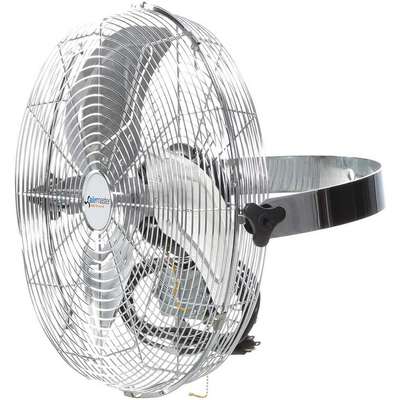

Airmaster Fan 12" Light-Duty Industrial Fan, Stationary, Ceiling, Wall, 115 VAC

Hover over image to magnify
Air Circulator,12 In,1448 Cfm,
PI_Asset_1370865
Air Circulator,12 In,1448 Cfm,
PI_Asset_1370865

#927129-3 | Pkg Qty: 1

$119.73 pkg | $119.73 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Circulator Height
16 in.
Motor RPM
1500
Air Flow
1,300/1,550/1,855 cfm
Motor Type
Shaded Pole
Bearing Type
Ball
Mounting Location
Ceiling, Wall
Blade Diameter
12 in.
NEMA Plug Configuration
5-15P
Blade Material
Aluminum
Number of Blades
3
Brand
AIRMASTER FAN
Number of Conductors
3
Cord Length
8 ft.
Oscillating
No
Drive Type
Direct
Outside Diameter
14-1/2 in.
Duty
Light Duty
Package Quantity
1
Guard Material
Steel
Phase
1
Hz
60 Hz
Shaft Diameter
5/16 in.
Item
Industrial Fan
Shipping Weight
11 lb.
Mfr. Part Number
78971
Sound Level
62/60/58 dBA
Mobile/Stationary
Stationary
Standards
OSHA; cUL
Motor Enclosure
Open Dripproof
Thermal Protection
Automatic
Motor HP
1/16
Voltage
115V AC
Motor Insulation
Class B
Width
16 in.
General
Application
Spot Cooling and People Cooling
Fan Mounting Location
Ceiling, Wall
Assembly Required
Yes
Includes
Pull Cord Speed Selection Switch
Environmental Applications
Industrial
Max. Ambient Temp.
105 Degrees F
Fan Cord Length
8 ft
Wheeled Base
Stationary
Fan Housing Material
Steel
Wire Guard Finish
Nickel Chrome

Product Description

Light-duty industrial wall-mount fans cool light manufacturing areas, warehouses, and other dry, clean spaces where floor space is limited. These air circulators are used where an office fan is inadequate and a heavier-duty or wet-location industrial fan isn't needed. Compared to standard-duty industrial fans, these light-duty fans are made of lighter-gauge materials and have a lower-horsepower motor with less-robust bearings.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
