SCHNEIDER ELECTRIC

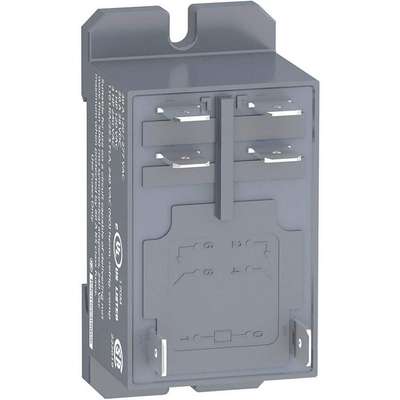

Schneider Electric 230VAC, 6-Pin Bottom Flange, Din Rail Enclosed Power Relay; Electrical Connection: 1/4" Tab Terminal
Hover over image to magnify
#927127-5 | Pkg Qty: 1
$21.38 pkg | $21.38 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
30 A @ 277 V
Input Power Consumption
4.0 VA
Base Type
Square
Item
Enclosed Power Relay
Body Depth
2.68 in.
Mfr. Part Number
RPF2AP7
Body Height
1.65 in.
Mounting
Bottom Flange, DIN Rail
Body Width
1.34 in.
Number of Contacts
2
Brand
SCHNEIDER ELECTRIC
Number of Pins
6
Coil Rating
4.0VA, 1.7W
Number of Poles
2
Coil VA Rating
4
Overall Height
1.54 in.
Coil Volts
230 VAC
Package Quantity
1
Contact Form
DPST-NO
Pins
6
Contact Material
Silver Tin Oxide
Power Relay Style
Enclosed Power Relay
Contact Rating
30 A @ 277 VAC, 20 A @ 28 VDC
Relay Power Consumption
4.0 VA
DC Contact Rating
20 A @ 28 V
Resistive Contact Amp Rating
30A @ 277VAC, 20A @ 28VDC
Dimensions
1.65 in.H, 1.34 in.W, 2.68 in.D
Response Time
25 msec
Electrical Connection
1/4 in. Tab Terminal
Series
Rpf
HP @ 120 V
1
Shipping Weight
.17 lb.
HP @ 240 V
3
Type
Power
Hz
50/60
General
AC Contact Rating - Relay
30A @ 277V
HP @ 240V
3
Body Depth - Relay
2.68 in
Hz - Electrical
50/60 Hz
Body Height - Relay
1.65 in
Mounting - Power Relay
Bottom Flange, Din Rail
Body Width - Relay
1.34 in
Mounting - Relay
Bottom Flange, DIN Rail
Contact Form - Relay
DPST-NO
Number of Pins - Relay
6
DC Contact Rating - Relay
20A @ 28V
Overall Height - Relay
1.54 in
Electrical Connection - Power Relay
1/4 in Tab Terminal
Power Consumption - Relay
4.0 VA
Features
Sealed Construction
Standards
UL, CSA, CE, CCN, cULus
HP @ 120V
1
Product Description
Featuring top-mounted 1/4" quick-connect terminals and a locating slot for DIN rail mounting, this relay has a flange-type mounting bracket.
