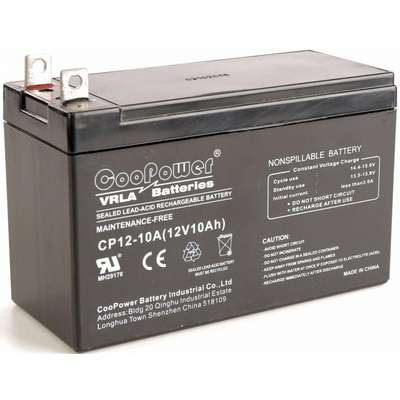

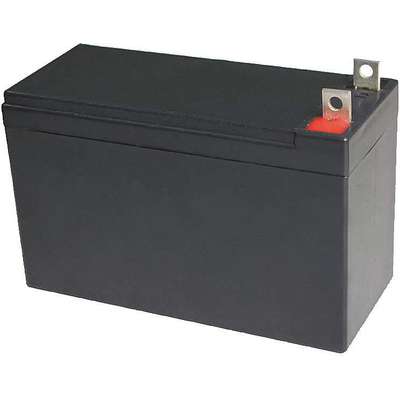

12VDC Sealed Lead Acid Battery, 10Ah, Tab with Bolt Hole, 4.19" Height, 6.05 lb. Weight

Hover over image to magnify
Battery,12VDC,10Ah,0.197" Dia.
PI_Asset_1371621
Battery,12VDC,10Ah,0.197" Dia.
PI_Asset_1371621

#927092-1 | Pkg Qty: 1

$66.86 pkg | $66.86 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Battery Capacity
10 Ah
Mfr. Part Number
5EFG9
Battery Chemistry
Sealed Lead Acid
Output Voltage
12
Battery Pack Recharge Time
24 hr.
Overall Height
4.17 in.
Battery Packs
1
Package Quantity
1
Battery Type
Sealed Lead Acid
Recharge Time
16 hr.
Brand
APPROVED SUPPLIER
Rechargeable Up To
3 yr.
Capacity
10 Ah
Sealed Lead Acid Battery Terminal Type
Tab with Bolt Hole
Color Family
Black
Shipping Weight
7.49 lb.
Depth
5-15/16 in.
Terminal Connection
0.197 in. Diameter Hole
For Battery Type
Lead Acid
Type
ABS
Height
4-3/16 in.
Voltage
12
Housing Material
ABS
Width
2-9/16 in.
Item
Battery
General
Application
General Purpose
Includes
For use with Generac
Battery Cross-Reference
CP12-10
Max. Operating Temp.
140 °F
Battery Cycle Type
Dual Purpose
Min. Operating Temp.
-4 °F
Battery Design
AGM
Standards
UL Rated
Capacity - Batteries
10 Ah
Terminal Connection - Batteries
Tab with 0.197 in Bolt Hole
Depth - Batteries
5 15/16 in
Terminal Location
Top
For Use With
All Purpose
Terminal Type - Batteries
Tab with Bolt Hole
Green Environmental
Product is Rechargeable
Voltage - Batteries
12V DC
Height - Batteries
4 3/16 in
Width - Batteries
2 9/16 in
Housing Material - Batteries
ABS

Product Description

AGM (absorbent glass mat) batteries are commonly used in emergency lighting equipment, fire panel or security systems, and electronics. They can also generate the burst of power required for startup applications. Their glass mat design keeps battery acid contained while creating minimal resistance within the battery to allow higher capacity and higher discharge rates than a gel-type SLA. They also function better in cold climates than a gel battery. AGM batteries should be installed in devices that will remain upright.
