SOLA/HEVI-DUTY

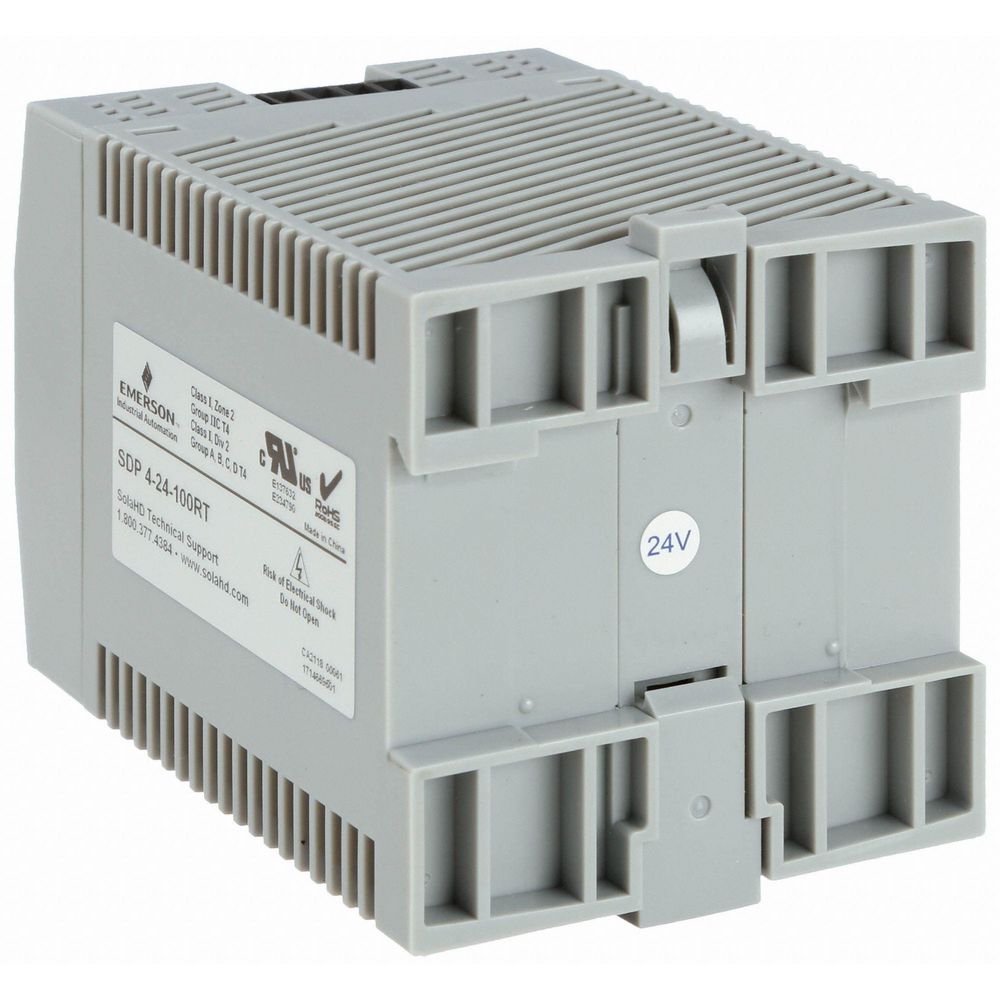

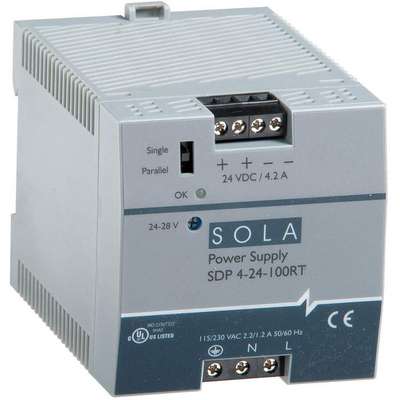

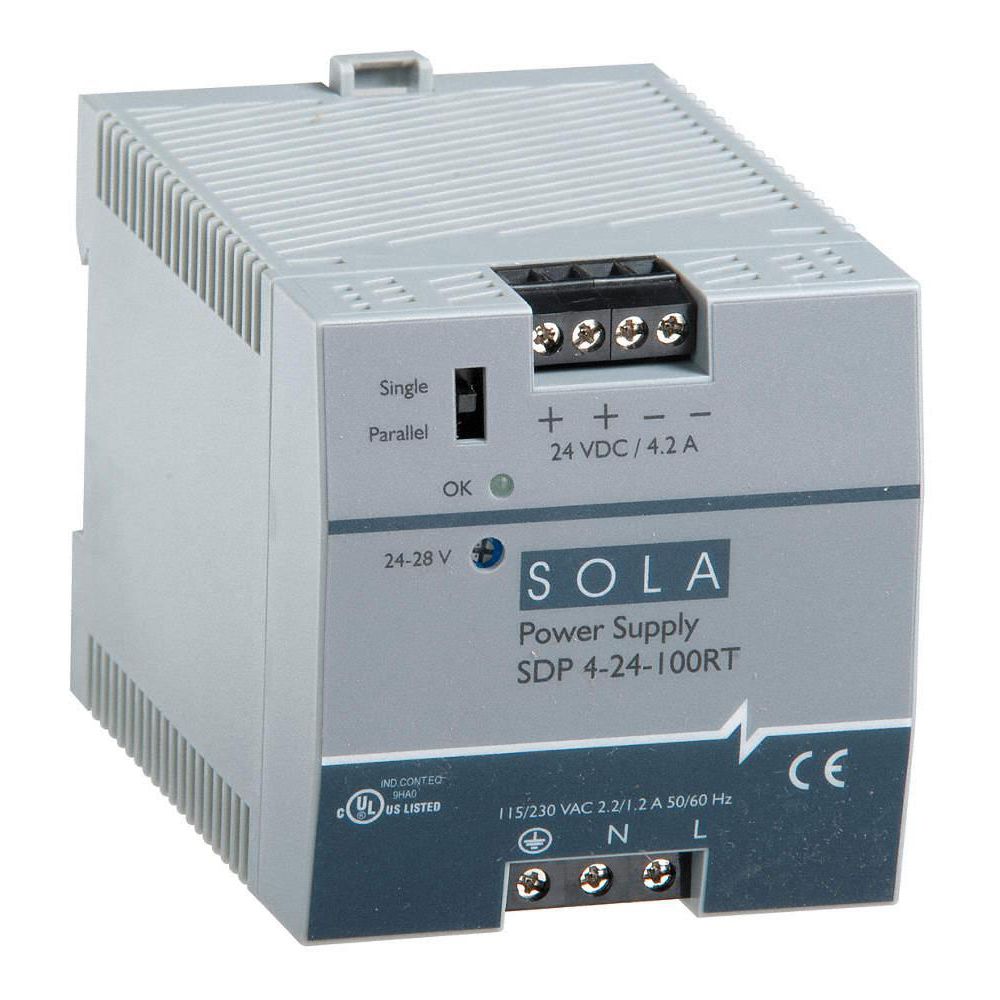

Sola/Hevi-Duty DC Power Supply: 176 to 264 V AC/210 to 375 VDC/85 to 132 V AC, Single, 24 to 28V DC, 100W
Hover over image to magnify
#927085-1 | Pkg Qty: 1
$259.16 pkg | $259.16 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
4.2 A
Output Amps
4.2
Brand
SOLA/HEVI-DUTY
Output Noise
Less Than 50mV
Case Material
Plastic Case
Output Voltage
24 to 28 VDC
Case Style
Molded Plastic
Package Quantity
1
Depth
3.8 in.
Peak Amps
6.3
Height
2.95 in.
Phase
1
Hold Up Time
Greater Than 50 msec
Power Rating
100 W
Hz
47 to 63
Series
Sdp
IP Rating
20
Shipping Weight
1.05 lb.
Input Voltage
85 to 132 VAC, 176 to 264 VAC
Status Indicator
Green DC OK Signal
Item
DC Power Supply
Style
Switching
Mfr. Part Number
SDP424100RT
Temperature Range (Deg. F)
-13 to 185 deg. F
Mounting
DIN Rail
Type
Switching
Mounting Type
DIN Rail
Voltage Output
24VDC
NEMA Rating
1
Width
2.85 in.
Operating Temperature Range
-1 deg. C to 6 deg. C
General
Features
Ultra Slim 15W Footprint, No Tools Required For Mounting, Adjustable Output, PowerboostÖ Industrial Overload Design, Overvoltagea And Short Circuit Protection, Low Output Noise, Screw Terminal Connections
Phase - Electrical
Single
Operating Temp. Range
-10° to 60°C
Standards
cUL us E61379, cURus E137632 E234790, CE
Product Description
SDP Series DC Power Supplies (DIN Mounted)
- Class 2 limited power source Adjustable output voltage Operating temp. range: -10° to 70°C Short-circuit protection Low output noise: 50mV p/p DC OK signal
- Easy-to-install units provide clean, stable DC power with a special industrial overload design that can start high inrush loads without oversizing. Compact and lightweight, with no derating necessary until above 60°C. DIN rail mount.
- Meet UL, C-UL, CE, and Class 2 NFPA 70, except No. 1GYK4 meets UL, C-UL, and CE standards.
Documents
Item Barcode
Dc Power Supply,24-28VDC,4.2A,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 10G792 | DC Power Supply,24- |
 | UNSPSC CODES | 39121004 | |
 | VMRS (ATA) CODES | 053-006-009 | DC Power Supply,24- |
