PULSATRON

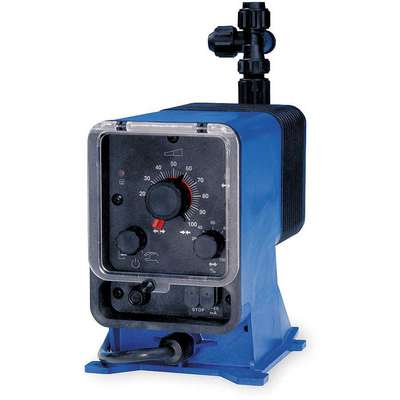

Diaphragm Chemical Metering Pump, Adjustable Output, 96.00 gpd Max. Flow, 100 psi, 115VAC
Hover over image to magnify
#927062-2 | Pkg Qty: 1
$1,840.49 pkg | $1,840.49 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Ball Material
Ceramic
Maximum Viscosity
1000 CPS
Body Material
ABS
Mfr. Part Number
LPG5SA-KTC3-G19
Brand
PULSATRON
Minimum Flow Rate
9.6 gpd
Chemical Metering Pump Type
Diaphragm
Minimum Flow Rate (GPD)
9.6
Compliance
cETLu, ETLsanitary, CE
Number of Feeds
1
Cord Length
6 ft.
Package Quantity
1
Diaphragm Design
PTFE Faced
Phase
1
Diaphragm Material
PTFE Faced
Pump Type
Diaphragm
Flow Rate Output Control
Adjustable
Reproducibility
2%
Head/Fitting Material
PVDF
Seals and O-Rings
PTFE
Height
11-3/8 in.
Self-Priming
Yes
Horsepower
1/5
Shipping Weight
16.78 lb.
Hz
50/60
Suction Lift
4 ft.
Item
Chemical Metering Pump
Tubing Material
PVC/Polyethylene
Length
11-15/16 in.
Turn Down Ratio
100:1
Maximum Flow (GPD)
96
Type
Adjustable Single Head
Maximum Flow (GPH)
4
Voltage
115 VAC
Maximum Flow Rate
96 gpd
Width
6-1/4 in.
Maximum Pressure
100 psi
cc/Minimum
252.3
Maximum Strokes per Minute
125
General
Ball Material - Pumps
Ceramic
Phase - Pumps
1
Body Material - Pumps
ABS
Power Cord
6 ft.
Features
Solenoid Drive, Stroke Length and Speed Adjustment
Reproducibility - Pumps
+/-2.0%
HP - Pumps
1/5 hp
Seals and O-Rings - Pumps
PTFE
Head and Fitting Material - Pumps
PVDF
Standards
NSF 61, cETLu, ETLsanitary, CE
Includes
4 ft Suction Tubing, 8 ft Discharge Tubing And 4 ft Bleed Valve Tubing, Backpressure Injection Valve Assembly, Foot Valve/Strainer Assembly
Turn Down Ratio - Pumps
1900-01-04 04:01:00
Max. Flow (gpd) - Pumps
96.00 gpd
Voltage - Pumps
115V AC
Max. Pressure - Pumps
100 psi
cc/Min.
252.3 cc/min
Max. Viscosity - Pumps
1,000 cps
Product Description
Adjustable Diaphragm Pumps
- Self-priming Reproducibility: ±3% on A Plus, ±2% on E Plus 115V
- Adjustable single-head metering pumps have a double-ball check valve and leak-free sealless liquid end. Powered by a high-quality fin-cooled solenoid. Wetted parts: PTFE-faced CSPE diaphragm, ABS body, ceramic ball, PTFE seals and O-rings, and PVC/polyethylene tubing. Each includes foot valve/strainer assembly, backpressure injection valve assembly, 4-ft. suction tubing, 8-ft. discharge tubing, and 4-ft. bleed valve tubing. Turndown ratio: 100:1. Max. viscosity: 1000cP.
- Note: Tubing is 3/8" O.D. for Max. Flow to 44 gpd, 1/2" O.D. for Max. Flow 96 gpd and higher.
