SCHNEIDER ELECTRIC

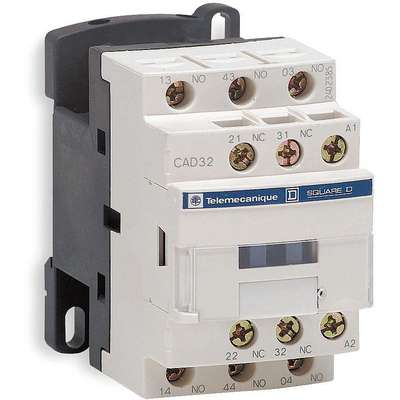

Schneider Electric 5NO IEC Control Relay, 10A, 24VDC, Din Rail/Panel Mounting
Hover over image to magnify
#927055-4 | Pkg Qty: 1
$171.02 pkg | $171.02 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 120/240/480/600 V
Input Power Consumption
8.0 VA
Body Depth
4.72 in.
Input or Control Voltage
24 VDC
Body Height
2.91 in.
Item
IEC Control Relay
Body Width
1.77 in.
Mfr. Part Number
CAD50BD
Brand
SCHNEIDER ELECTRIC
Mounting
DIN Rail, Surface
Coil Rating
70VA Inrush, 8VA Sealed
Number of Contacts
5
Coil Volts
24 VDC
Number of Pins
12
Contact Form
5NO
Overall Height
3.03 in.
Contact Material
Silver Nickel
Package Quantity
1
DC Contact Rating
2.00 A @ 125/250/600 V
Relay Power Consumption
8.0 VA
Hz
Not Applicable
Resistive Contact Amp Rating
10A
Inductive Contact Amp Rating
A600 to Q600
Shipping Weight
1.15 lb.
General
AC Contact Rating - Relay
10A @ 120/240/480/600V
DC Contact Rating - Relay
2.00A @ 125/250/600V
Aux. Contact Configuration
5NO
Mounting - Relay
DIN Rail, Surface
Auxiliary Contact Configuration
5NO
Number of Pins - Relay
12
Body Depth - Relay
4.72 in
Overall Height - Relay
3.03 in
Body Height - Relay
2.91 in
Power Consumption - Relay
8.0 VA
Body Width - Relay
1.77 in
Standards
UL, CSA, CE
Contact Form - Relay
(5) SPST-NO
Product Description
TeSys IEC Control Relays
- 600V, 10A rating (A600) DIN rail mounting capability CSA Certified, and CE Certified. CAD Series Serrated contacts provide a wiping action to ensure excellent performance with low control voltage (24V). Basic 5-pole relay can be installed with a snap-on adder cartridge. Built to a design specification of 30 million mechanical operations. Standard instantaneous auxiliary contact blocks are available. See listing on page 326
Expertly Selected Product Pairings
Item Barcode
Iec Control Relay,5NO,24VDC,10A
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3EA29 | IEC Control Relay,5NO, |
 | UNSPSC CODES | 39122331 | |
 | VMRS (ATA) CODES | 053-006-009 | IEC Control Relay,5NO, |
